KIND Mobile Lifting Teleprompter KD-TEL-ECA800

1. Aluminum alloy structure integrated dual screen teleprompter;

2. Mirror screen, actor screen, and spectroscope, three foldable screens;

3. 4K ultra high-definition actor screen with HD4K 2.0 signal loop out;

4. Built in computer, multi angle prompts;

5. Tool free installation, flexible and diverse control methods, supporting multiple shooting devices;

6. Wireless screen mirroring, custom text display, document import and editing, support for playing multiple file formats, and multiple teleprompter apps;

7. Broadcast-grade full-view PTZ；

8. Mobile chassis and lifting electric cylinder；

9. Control keyboard；

10. Support Free-D protocol.

Send email to us

Product Detail

Product Tags

1 Piece

$11428

Product description

1. KIND Broadcast Foldable Dual-screen Teleprompter KD-TEL-2FS

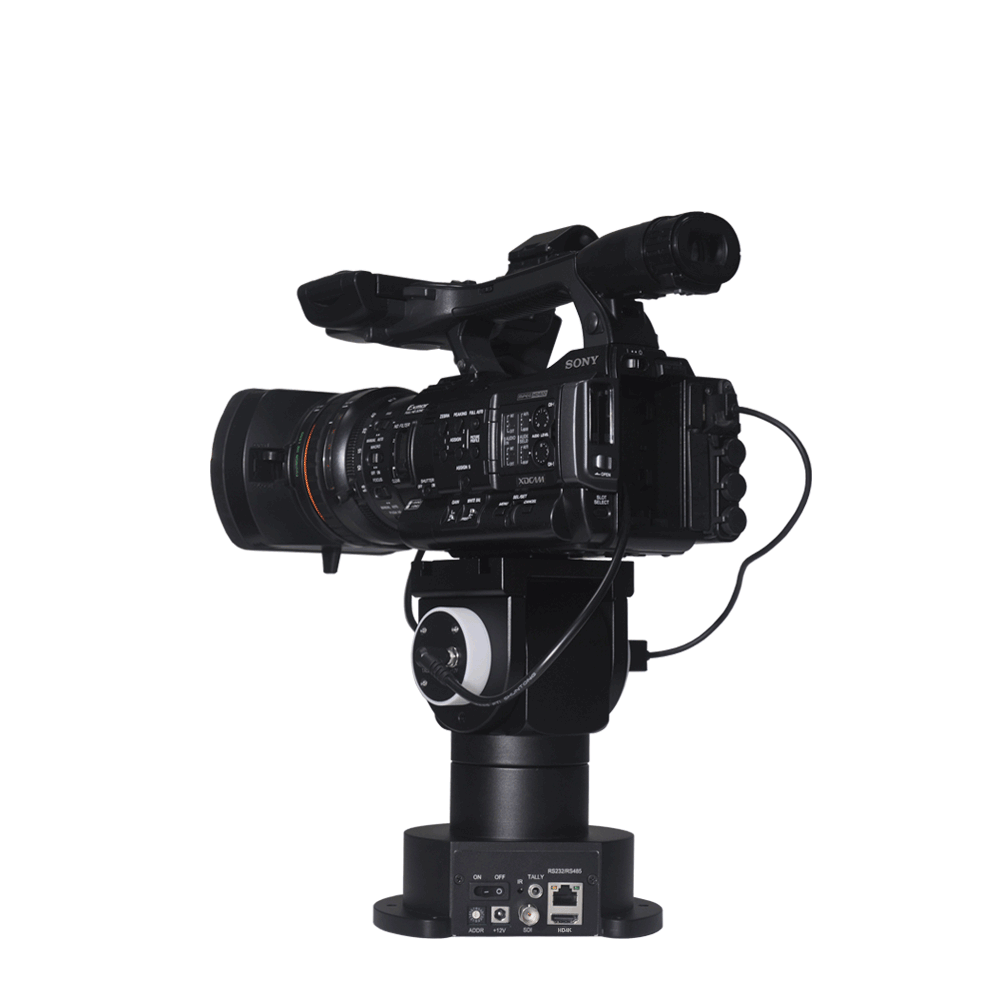

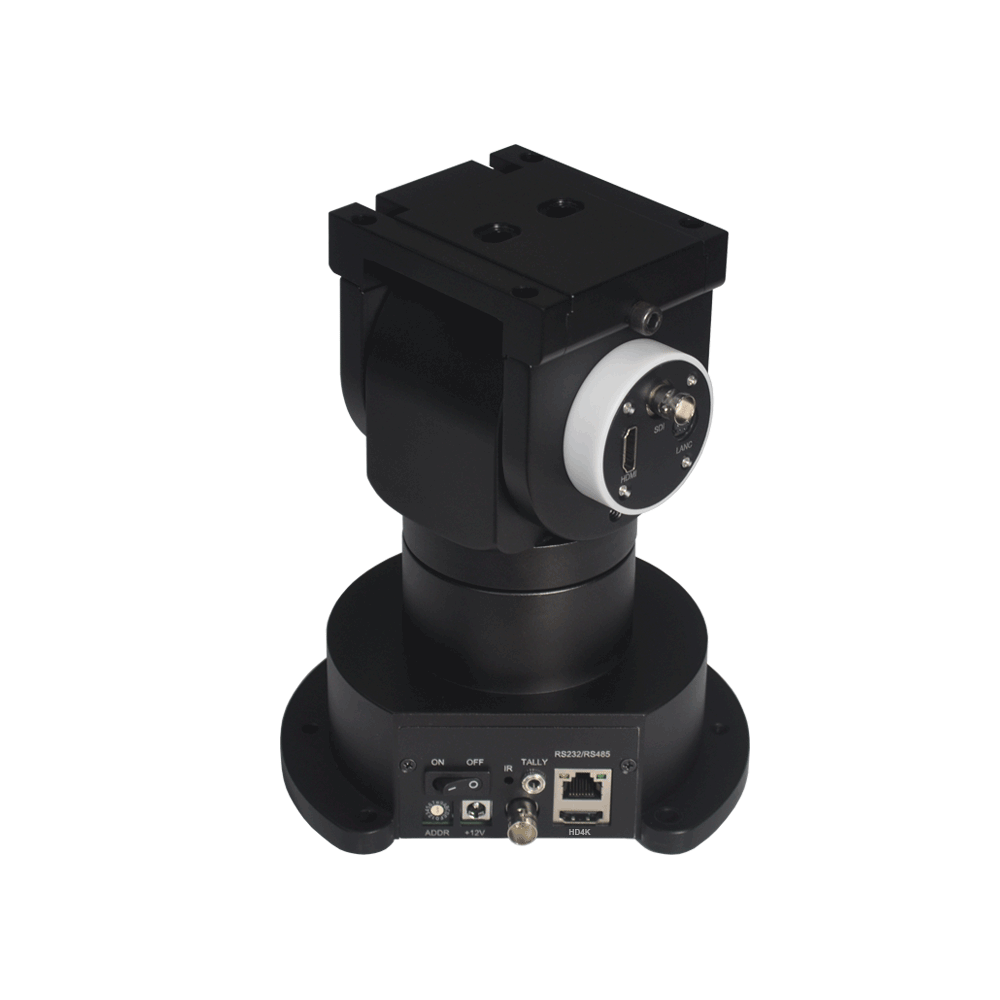

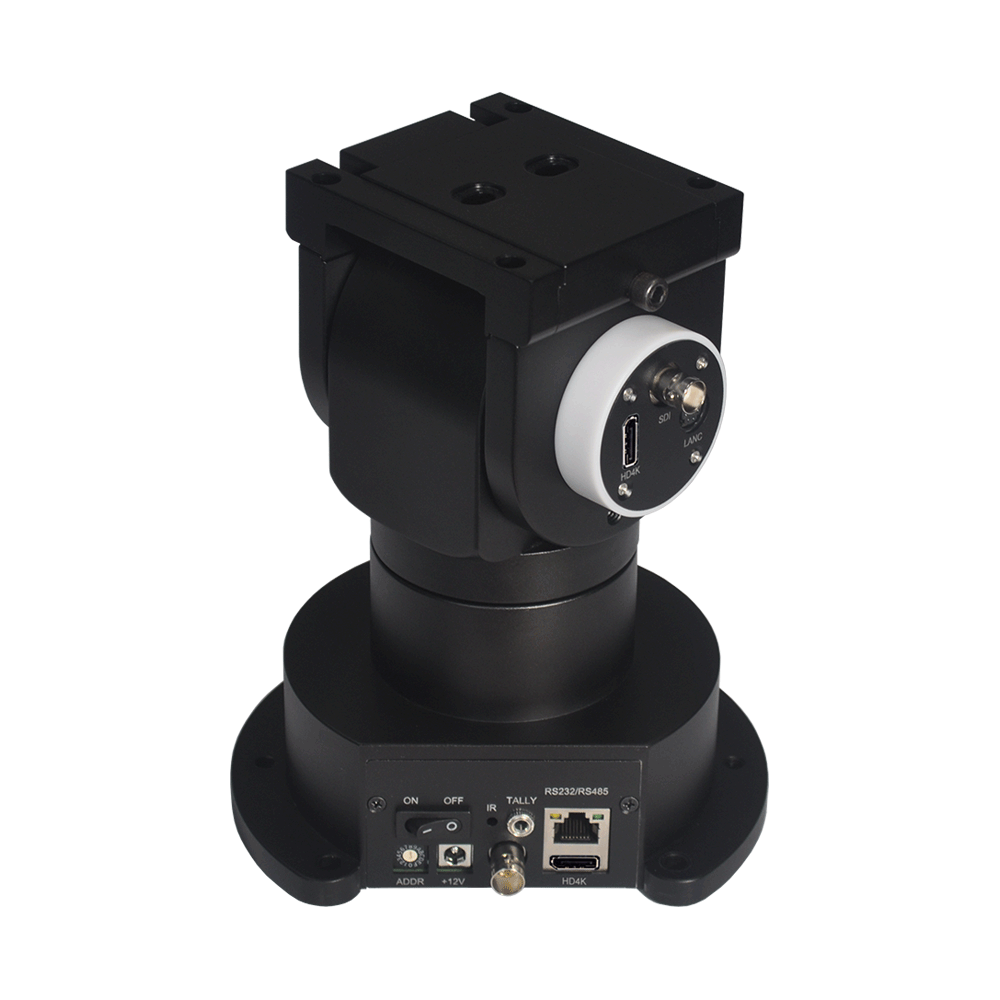

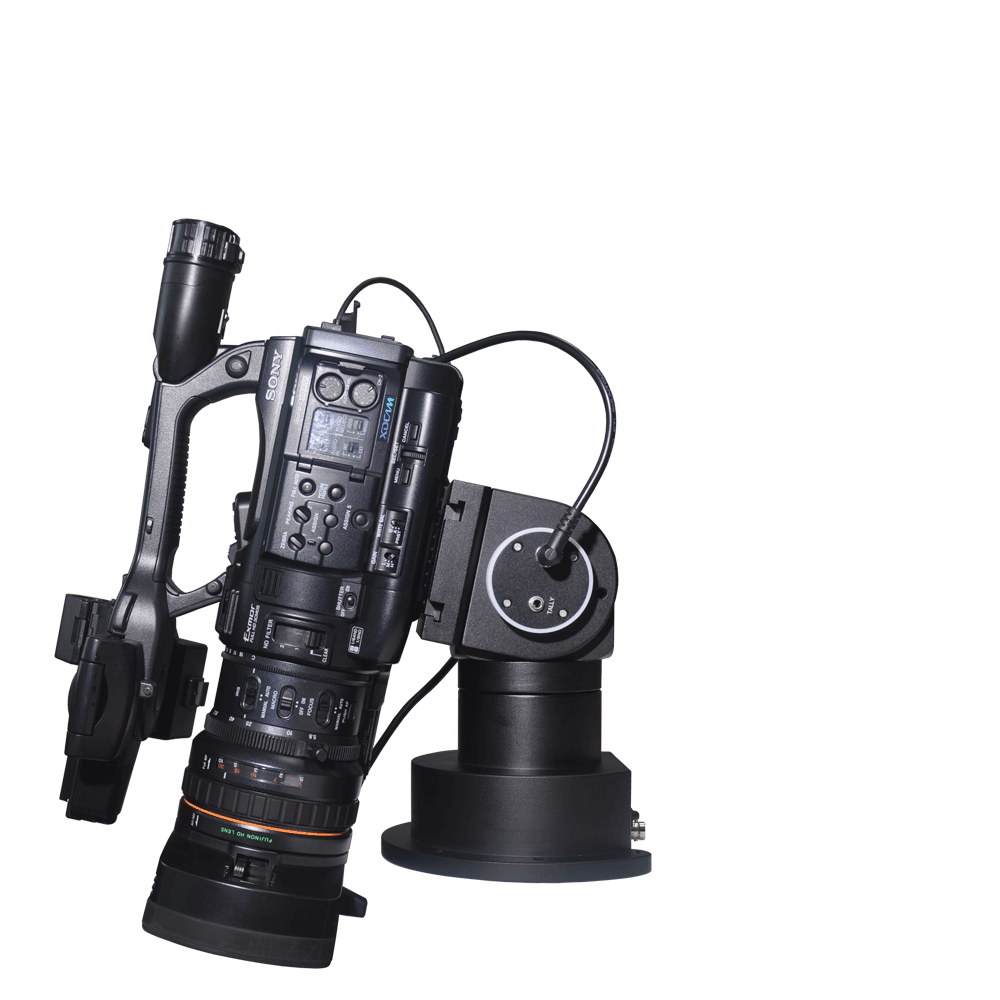

2. KIND Broadcast-Grade Full-View PTZ: KD-A800PTZ

Rotation range: horizontal: 350°; Pitch: +90°~-90°; Software limit supported;
Rotation speed: horizontal: 0.01~60°/s; Pitch: 0.01~60°/s; Full-speed control for pan/tilt and lens;
Positioning method and accuracy: full closed-loop absolute positioning, 0.01°±10%;
Adjustable damping: supported (manufacturer preset), fully customizable by the user, with features such as slow stop/start and rapid response;
Preset positions: 16;
Preset tracks: 9 groups, 256 commands per group (including horizontal, pitch, and lens);
Control protocol: VISCA;
Video signal output: SDI×1, HD4K×1;
Remote power on/off: supported;
Protocol type: VISCA, supports protocol customization;
FREE-D protocol: supported;
Camera power supply: supported;
Control method: supports wired network cable RS232/RS485;
Baud rate: 9600bps;
Control distance: wired 1.2km;
Installation method: standard mounting, ceiling mounting;
Power requirements voltage: 24V~36V;
Power: 80W (excluding camera);
Operating temperature: -10℃~45℃;
TALLY: supported;
Load capacity: 10kg weight adaptive;
Size: 158mm×158mm×206mm;
Weight: 4.5kg.

3. KIND Mobile Shooting Lifting System: KD-EC-2LS/3LS

Mobile chassis: KD-60F5
All-aluminum CNC precision machined, surface polished multiple times for a smooth finish;
5 high-grade swivel casters with brakes and leveling adjustment;
Dimensions: 600mm×600mm×105mm;
Weight: 11.15kg.

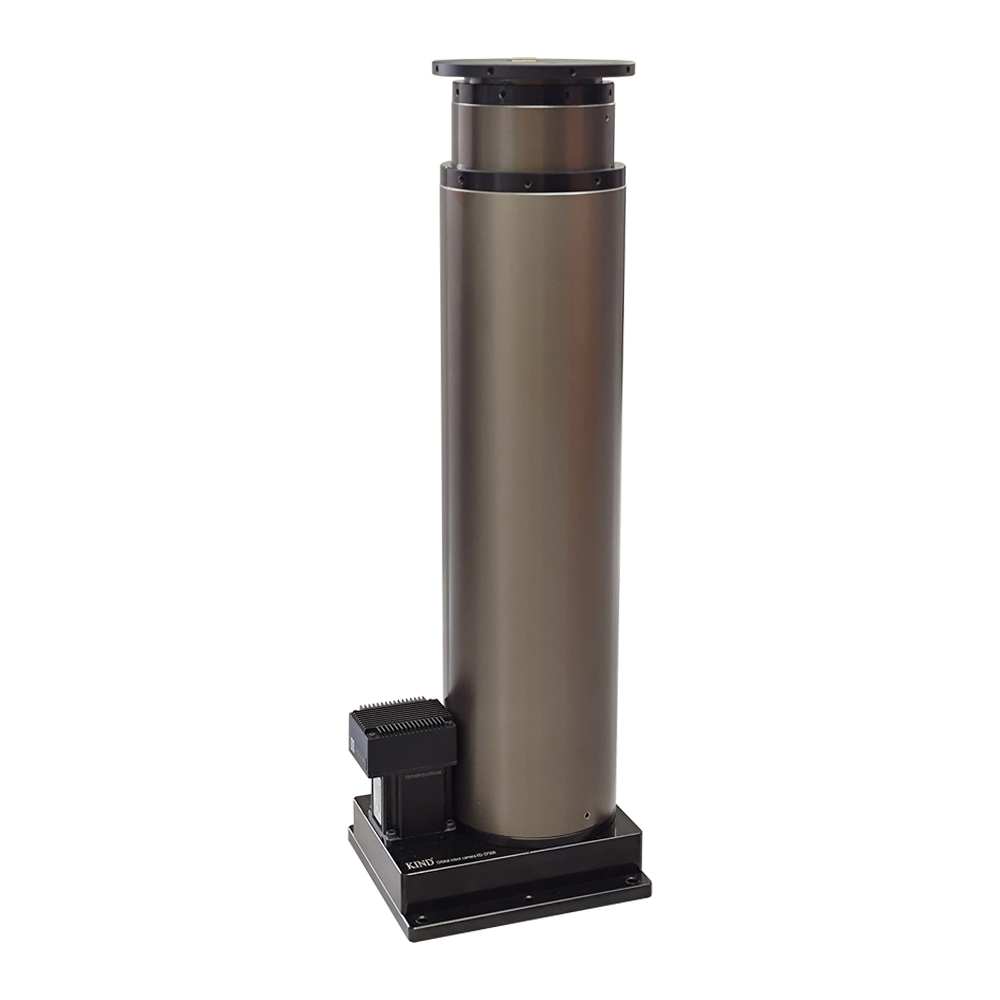

Lifting system: lifting electric cylinder KD-EC800
This precision three-section, two-stage ball screw electric cylinder has sections with diameters of Ø145mm, Ø125mm, and Ø105mm respectively. It features an initial travel of ≤700mm, a stroke of 800mm, and smooth operation during starting, braking, and travel. The repeatability is ±0.01mm, with a rated thrust of 0.42KN. It is programmable and features integrated control. Speed ranges from 70mm/s to 0.1mm/s (steplessly adjustable with servo motor control). It offers programmable control, quiet and stable operation, and allows for preset positions and strokes. The load capacity is 20Kg. Weight: 16.8Kg.

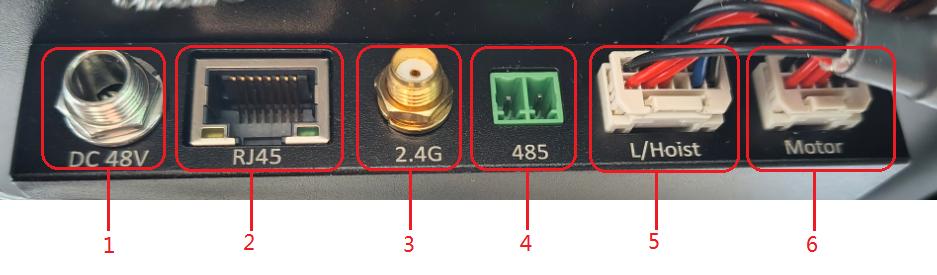

Power supply and main control system

1: 48V power input;
2: Ethernet port;
3: Wireless control antenna;
4: RS485 control interface;
5: Lifting column interface;
6: Motor control interface
Supports 2.4G wireless control, network control, and RS485 control.
Supports 1-channel servo motor control.
Supports 9 preset points.
Supports recording and playback of 9 tracks.
Supports Free-D function.
Power supply: 48V/5A.

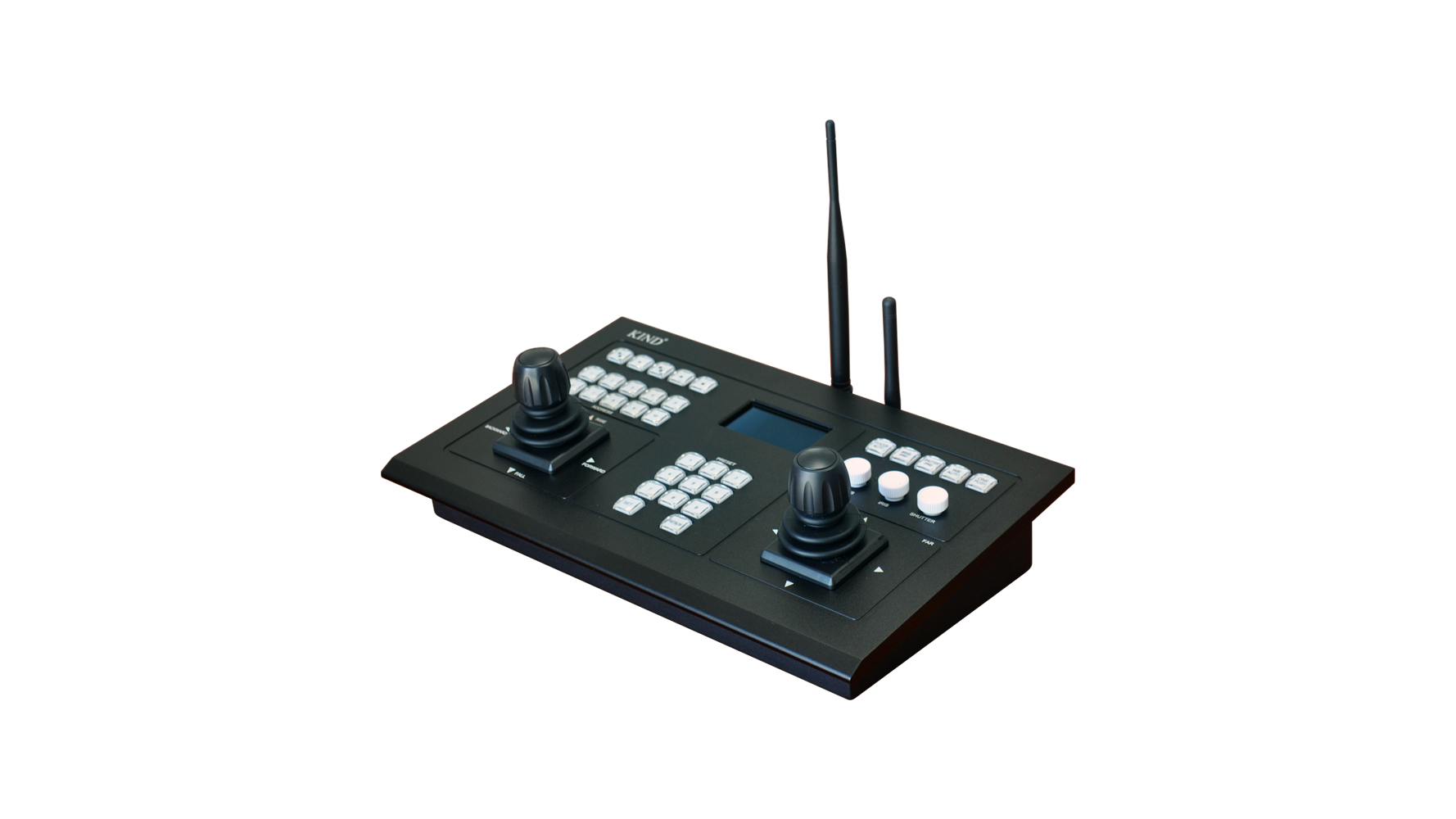

4. KIND Control Keyboard: KD-C50R5H

Joysticks: Two broadcast-grade 3-axis high-precision three-dimensional control joysticks;
Buttons: Broadcast-grade buttons with blue backlight;It can control 10 cameras and 1 track robot camera.

The maximum speed for movement/lifting, pan/tele, zoom, and focus can be independently adjusted in 8 levels.
It features an imported 3D joystick for smooth acceleration and deceleration.
Movement, lifting, pan, and tele are independently set to reverse, facilitating hoisting applications.
Remote control of camera recording (KIND cameras). It can control one camera individually or control all cameras with a single button.
Supports setting, recalling, and deleting 9 preset points.
Supports setting, recalling, and deleting 9 tracks. Each track supports up to 225 commands.
Supports manual adjustment of focus, aperture, shutter speed, and white balance.
Supports the Visca protocol (RS232 and RS485 interfaces), with adjustable baud rates (9600, 115200).
Supports the Visca over IP protocol, allowing camera control via Ethernet.
Supports the Free-D protocol. This protocol returns the position information of the track vehicle and cameras. It can interface with all mainstream virtual systems that support the Free-D protocol.
Supports 2.4G wireless control, network control, RS485 control, and RS232 control.

Dimensions: 325mm×200mm×65mm; 325mm×200mm×120mm (with joystick);
Weight: 1.9 kg;
Operating Temperature: -10°C~70°C;
Relative Humidity: 30%~90%;
Power adapter: AC100V~240V to 12VDC/2000mA;
Power: 8W.
