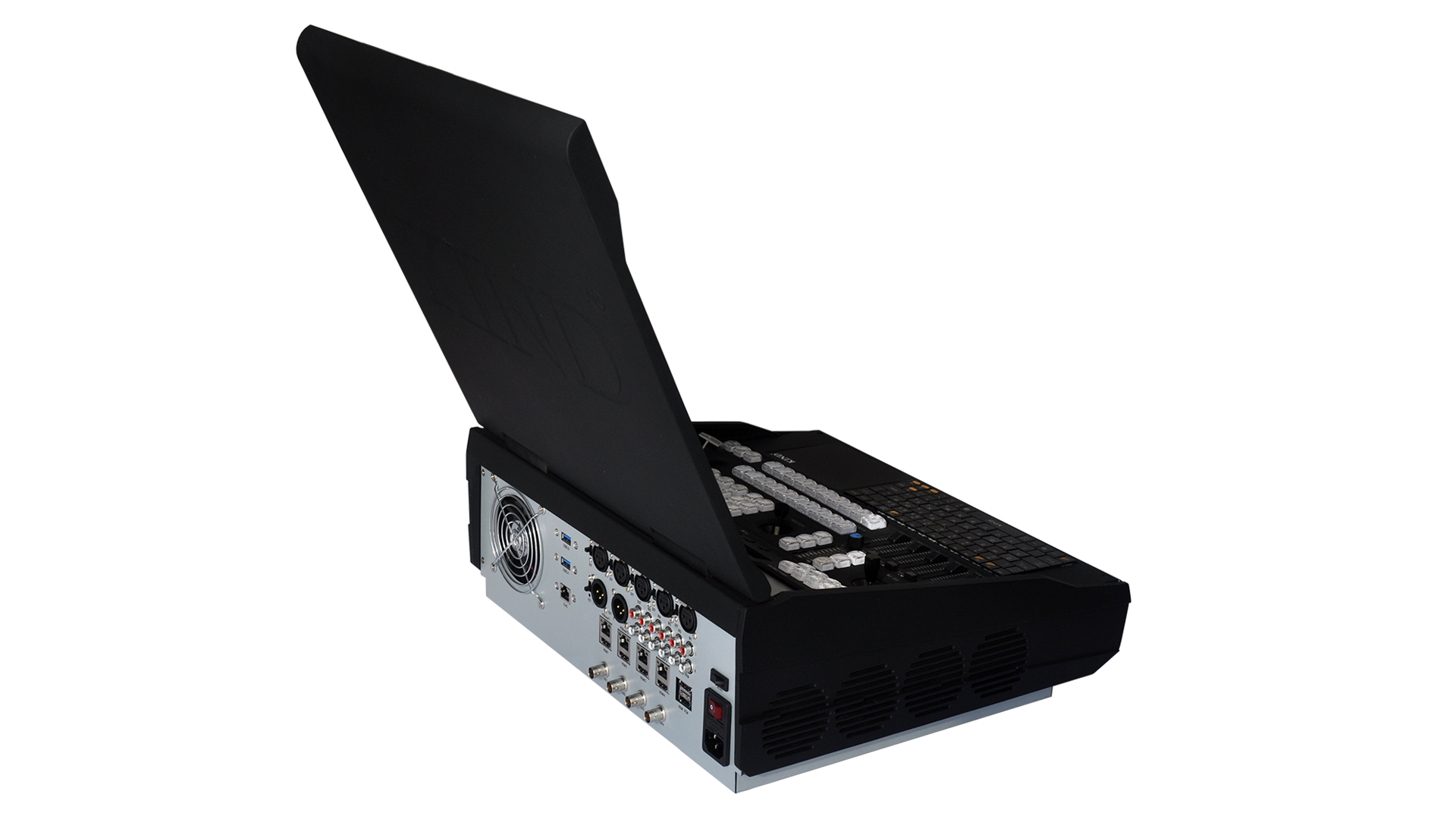

KD-LC-8M Professional Live Cast Casting Video Live Cast Station


KD-LC-8M Professional Live Cast Casting Video Live Cast Station

1. Video processing:Switching station, hardware signal (SDI, HDMI, HDBaseT)+NDI+Stream+DDR, mixed switching;

2, Audio processing:Digital mixer+Analog mixer+Audio hardware delay device;

3, Recording:MP4;

4. Live broadcast: Http, Rtmp,NDI,SRT;

5.Camera PTZ control system ;

6. Intercom and Tally and TALLY;

7. Captioning system, slow motion system, virtual system, audio and video editing system;

8. Automatic switching,Fault pass-through, power-off pass-through;

9. Application: studio, education recording, media live broadcast, all kinds of meetings and activities live broadcast;

10. Size: 380mm×410mm×170mm; Weight: about 10kg;

Product Detail

Product Tags

1 Pieces


Product specification sheet

Model Number KD-LC-8M
Power supply AC110V-240V,50Hz,400W
Operating temperature 0-40℃
Size (L×W×H)410mm×370mm×160mm
Weight 10kg
Video input SDI×4,HDMI(4K)×4,HDBaseT(4K)×4,NDI×8,SRT×8,Stream×8,DDR×2
Video output HDMI×1,NDI×1,SRT×1;
Audio input Stereo (L,R) IN RCA×5,MIC XLR×5
Audio output Stereo (L,R) OUT RCA×1,Balanced XLR OUT×2,Monitor3.5×1,
Other interface USB2.0×2,USB3.0×2,RJ451000M×1
Sound console Digital mixer×5, Analog mixer×5,Audio hardware delay device×1
REC 3840×2160,MP4
live streaming http,rtmp,NDI,SRT
Control PTZ control
subtitle CG-Alpha DVE, Video playback ,Virtual matting system
configuration Intel i9 12900TCPU, DDR5 32G, 1TB SSD
Systerm Windows 11

Product description

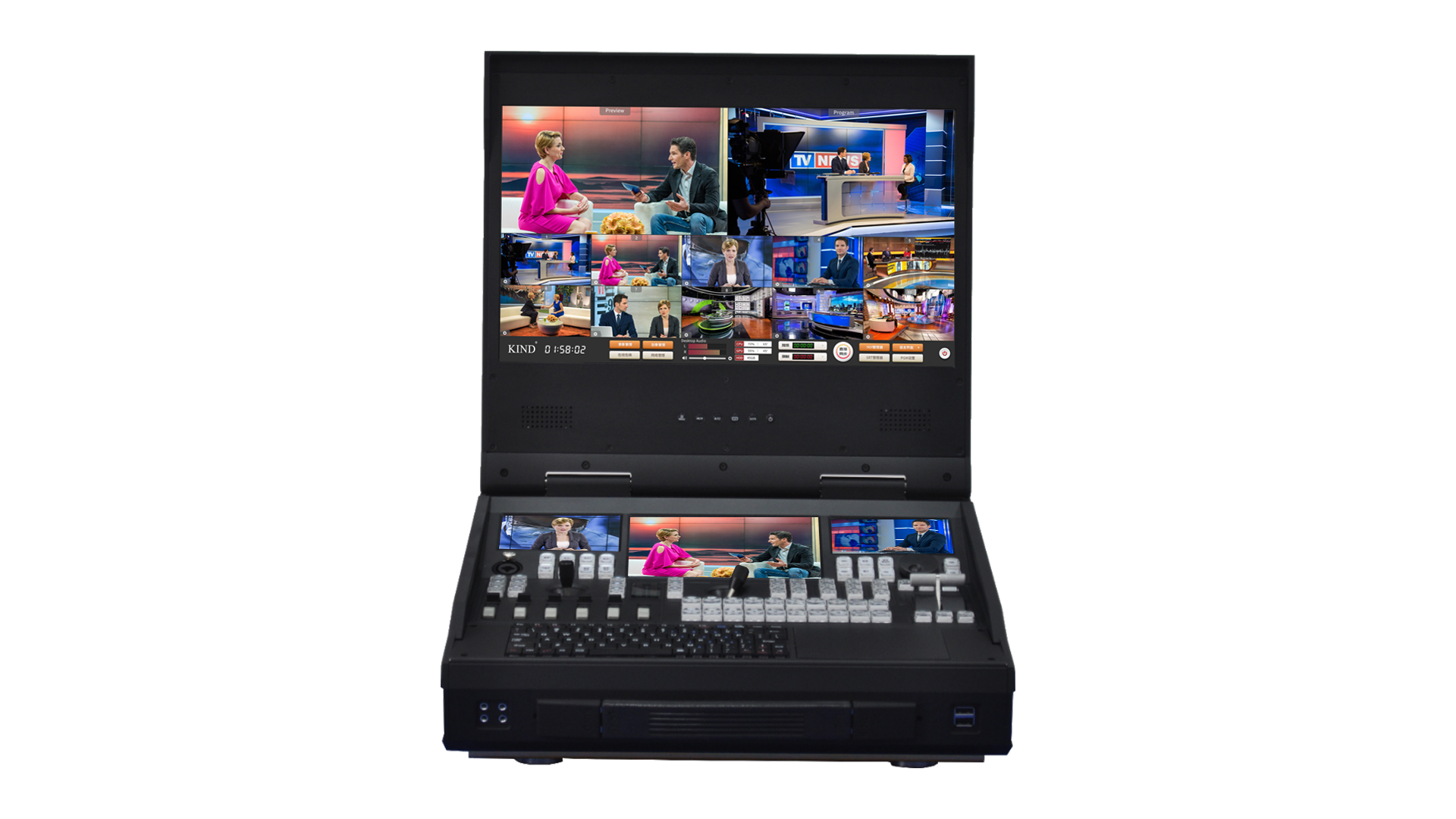

1. Hardware:  i9  12900T CPU,DDR5 32 GB memory,1TB SSD disk, four built-in display,  There is one main system screen of 17.3 inches or more, output monitoring screen of 6.5 inches or more, two signal input monitoring screens of 4.3 inches or more, and four screens are all 1920×1080LED screens. It is a portable all-in-one machine for purchasing, broadcasting, recording and broadcasting of mg alloy with built-in 8-channel 4K acquisition and coding system.

2. Input: HDMI(4K)×4, HDBaseT×4, NDI×8,SRT×8, Output: HDMI, NDI, SRT.

3. Built-in 4K mixed switch, built-in picture-in-picture any position rocker potentiometer, built-in broadcast damping switch T push rod, achieve zero second full frame hard cutting, hardware mixed 3840×2160, coding resolution 3840×2160, input signal and local material DDR (pictures, videos, PPT, etc.) file switching, hardware rotary encoder control DDR pause, forward and backward select player point and control playback, 100 kinds of hardware switching special effects;

4. Hardware input signal and NDI, local files (video, picture, PPT) and network flow (mobile phone Stream, uav Stream and other RTMP Stream) real-time switch, built-in NDI×6, Stream×6, support push Stream and pull Stream mode.


5. Built-in digital + analog mixer, audio embedded and unembedded, realize the mixing of digital audio and analog audio, provide SDI×4, HDMI×4 digital audio embedded/unembedded input selection hardware switch ×5, and digital audio ×5, analog stereo ×5, MAC XLR×5 and other external input audio mixing,  Modulated audio can be embedded for HDMI, at the same time can be separated into stereo output, built-in 48V phantom power supply, XLR×5 input, stereo ×5 input, stereo ×1 output, broadcast monitoring 3.5×1, broadcast monitoring 3.5×1, broadcast monitoring 3.5×1, guide talk headset  3.5×1;

6. REC  3840×2160 MP4;

7. built-in hardware rocker potentiometer, control 4 sets of camera push, pull, shake, tilt, tilt;

8. Built-in hardware TALLY for the 4-channel multicast call system and 4-channel multicast prompt system;

9. Built-in hardware stepping encoder captioning control system, realize captioning selection and captioning switch;


10. Built-in hardware single-key keying system, hardware rotary encoder to adjust virtual keying effect, virtual composite image can be used as signal source to switch with other signals and files through T-type damping switch push rod;

11. The built-in fault leads to the safety system, the system fault directly passes through the 1-channel signal, and the power-off directly passes through the 4-channel signal;

12. Built-in CG-Alaph subtitle and online packaging system, realizing more than ten layers of Alaph dynamic subtitle, Angle mark and platform mark, etc. 3d objects and light effect, dynamic material, DVE direct video, video material and other ways to achieve an all-round visual packaging of live programming;

13. Built-in broadcast grade nonlinear editing system;

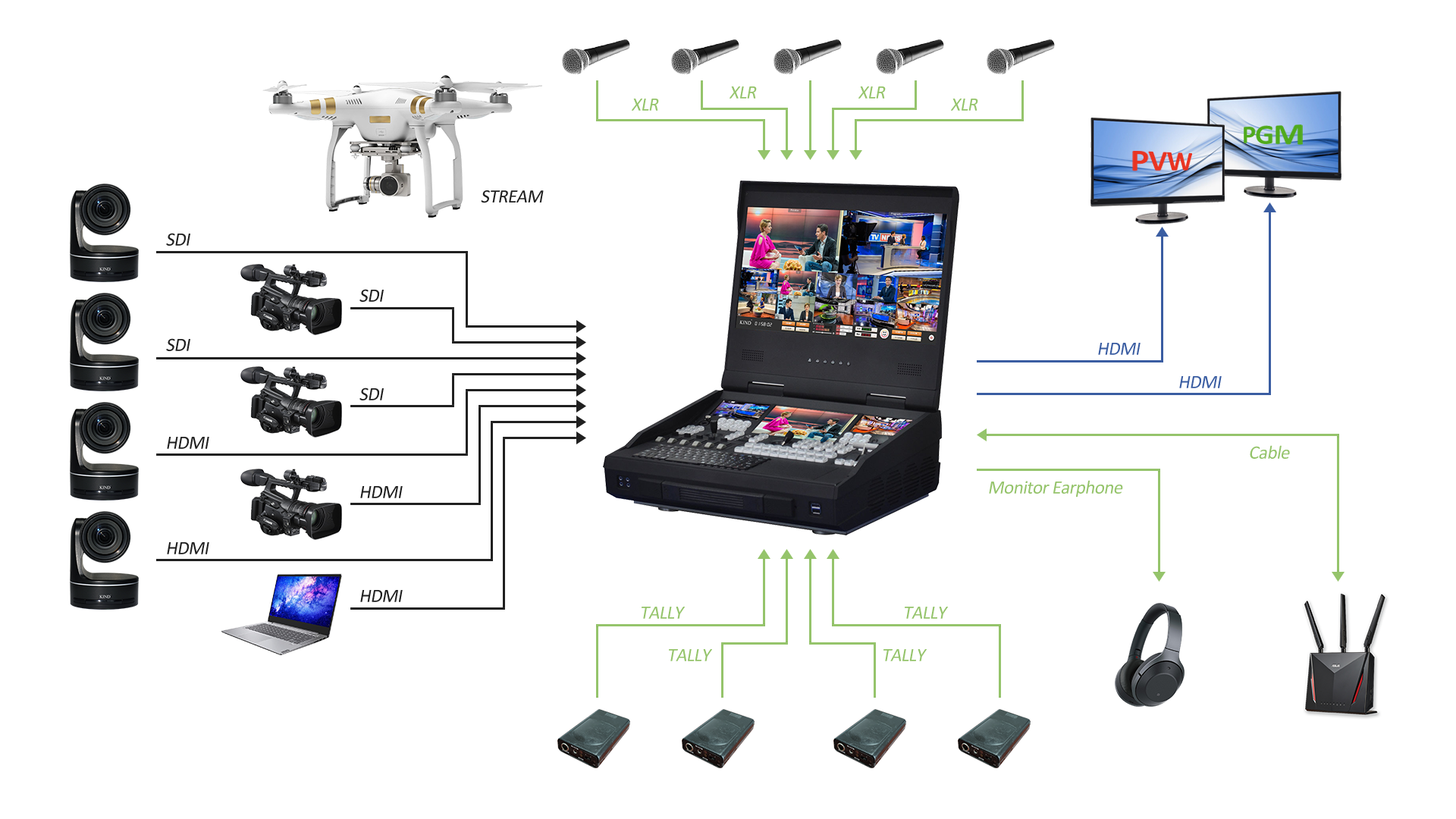

14. Interface: VIDEO IN×4(BNC);  HDBaseT IN(4K)×4;HDMI(4K) IN×4;  Stereo (LEFT, RIGHT) IN×5;  Professional microphone (48V) XLR IN×5;  Stereo (LEFT, RIGHT) OUT×1;  Balanced output XLR OUT×2;

15. WIN11 64-bit operating system;
