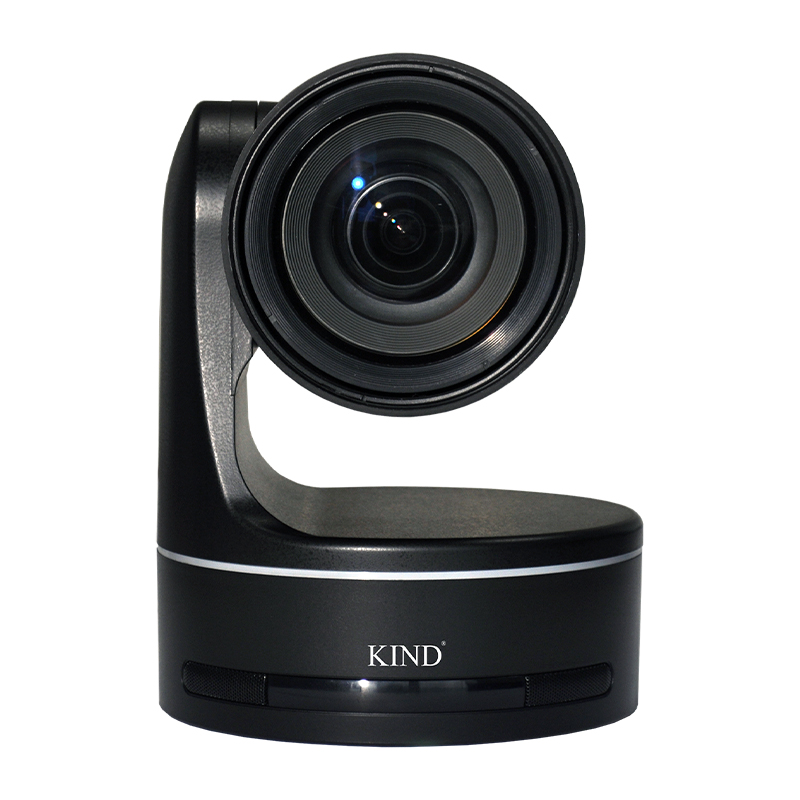

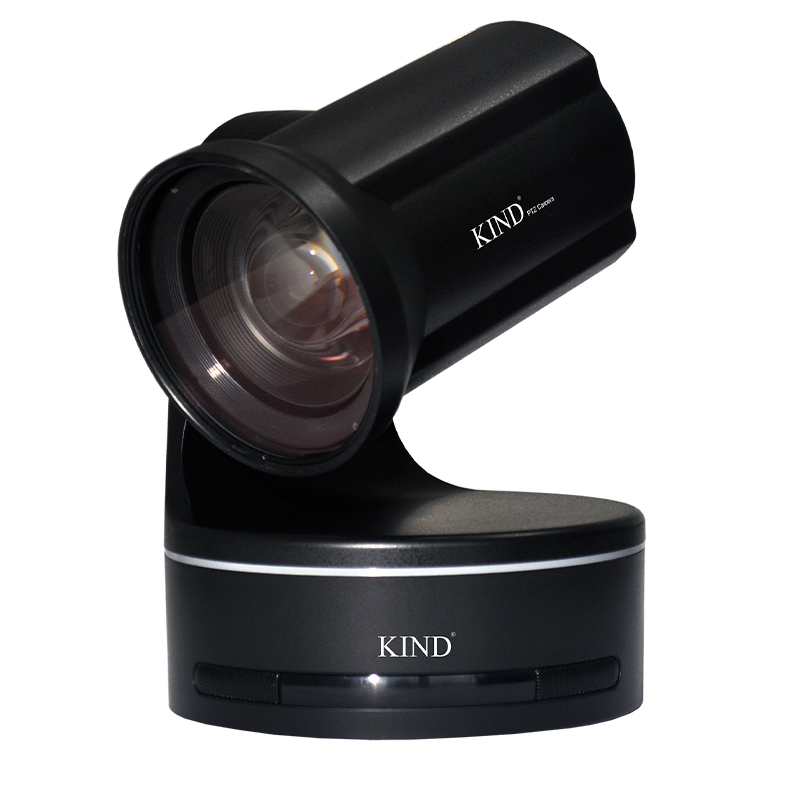

KD-C18NW Kind Wide-Angle 360 Degrees Tally Light Ptz Camera Real-Time Camera Station


KD-C18NW Kind Wide-Angle 360 Degrees Tally Light Ptz Camera Real-Time Camera Station

1. 1/1.8 Exmor RS CMOS;

2. The lens diameter is 105mm;

3. Super wide angle, 92° diagonal and 85° horizontal;

4. Servo motor high-speed pan/tilt, pan and tilt speed: speed 0.1°~300°/sec;

5. 12x optical zoom;

6. NDI HX wireless has a delay of 150ms;

7. Record MP4/MOV, 1920×1080@60fps Ultra TF (MicroSD) FAT32, exFAT;

8. Live NDI HX, 360°Tally light, built-in dual φ9.7 microphone omni-directional array microphone;

9. Application: studio, education recording and broadcasting, media live broadcasting, multi-camera shooting;

10. Size: 160mm×155mm×230mm; Weight: about 2kg;

Product Detail

Product Tags

1 Pieces


Product specification sheet

Model KD-C18NW
Imager 1/1.8 Type Exmor Rs Cmos
Lens Diameter 105mm
Zoom 12x
Perspective 92°Diagonal,85°Level
Distortion -2%~0.2%
Angle Pan-175°~+175°,Tilt+90°~-45°
Speed Servo Motor Control,Shift Speed:Pan0.1°~300°/s,Tilt0.1°~300°/s
Precision Precision Repeatability Error <0.01
Slow Mode Support
Effective Pixels 2,400,000 Pixels
Minimum Illumination 0.01 Lux
SNR 55db
Resolution 1920x1080
Aperture Auto/Manual
Focus Auto/Manual
White Balance Auto/Manual
Focal Length f=4.2mm~50.4mm,f1.8 (Wide)~f2.8 (Tele)
Minimum Object Distance 1000mm~Inf (Wide),1500mm~Inf (Tele)
Signal Format 1080p/60,1080i/60,1080p/50,1080i/50,1080p/30,1080p/25,Max:2048x1080
Preset Position 128
Control Interface Visca RS-485,RJ45 (Input/Output),Support Control, NDI Hx Wireless
Output Interface BNC(×1),1.0 Vp-p,75ω,3G-SDI Out×1(Option),NDI RJ45×1,NDI Hx Wireless Wi-Fi×1 Ieee802.11a/b/g/n/Ac,Usb×1
Wireless Transmission NDI Hx Wireless,Delayed 150ms
Video Encoding H.264 Baseline/Main/High Profile,4:2:0,Max:8mbps
Audio Coding AAC Lc,32kbps,64kbps,96kbps,128 Kbps
Recording Format MP4/MOV,1920x1080@60fps
Record Card Ultra Tf (Microsd) Fat32 , Exfat
Live Streaming NDI HX
Director Tips 360°Tally
Power Supply DC Jack 12dc,DC10.8v-13.2v,Power Supply

Product description

 LIVECAM STATION KD-C18NW technical parameters


Imager: 1/1.8 large target surface Exmor RS CMOS imager;

Lens filter diameter: 105mm, multi-layer antireflection, light transmittance>99%;

Optical zoom: 12 times;

Viewing angle: 92° diagonal (wide-angle end), horizontal 85° (wide-angle end);

Distortion: -2%~0.2%;

Pan/tilt angle: pan -170°~+170, tilt +90°~-45°;

Pan/tilt speed: servo motor control, pan 0.1°~300°/sec, tilt 0.1°~300°/sec;

Pan/tilt accuracy: repeatability accuracy error <0.01°;

Pan/tilt slow mode: support;

Effective pixels: 2.4 million effective pixels;

Minimum illumination: 0.01 lux;

Signal to noise ratio: 55dB;

Resolution: 1920×1080;

Focusing system: automatic/manual;

White balance: automatic/manual;


Focal length: f=4.2mm~50.4mm, F1.8 (Wide) ~ F2.8 (Tele);

Minimum object distance: 1000mm~INF (Wide), 1500mm~INF (Tele);

Video format: HD: 1080p/60, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/50, 720p/30, 720p/25;

Preset positions: 128;

Camera control interface: VISCA RS-485, RJ45 (input/output), NDI wireless (input/output);

Output interface: BNC (×1), 1.0 Vp-p, 75Ω, 3G-SDI output×1 (optional); NDI cable-RJ45×1, Wi-Fi antenna×2 IEEE802.11a/b/g/n/ ac, USB×1;


Wireless transmission: NDI HX wireless, supports WiFi wireless transmission, with a delay of 150ms;

Video encoding: H.264 Baseline / Main / High Profile, 4:2:0, maximum support 8Mbps;

Audio coding: AAC LC, support 32 Kbps, 64 Kbps, 96 Kbps, 128 Kbps;

Recording format: MP4 / MOV; Recording format: Maximum support 1920x1080@60fps; Signal format: Support progressive and interlaced signals; SD card file system format supports FAT32, exFAT; Support remote control recording/stop;

Recording card: Ultra 128GB TF (MicroSD) memory card (optional);

Live broadcast: support NDIHX2.0 protocol;

DC input: DC jack 12DC, DC10.8V-13.2V;

Director prompt: 360°Tally light;

Wireless NDI HX

Multiple KD-C18NW cameras are wirelessly transmitted together without any interference, and there is no distance limitation. As long as there is a wireless network signal, the audio and video signals can be transmitted stably, and the picture is clear and smooth, with a delay of ≤100ms, no tailing, KD- C18NW camera control and recording are also very good. First of all, the camera's push, pull, pan, tilt, and tilt can be controlled wirelessly and remotely in real-time. The control can be controlled in real-time through KIND's full range of all-in-one acquisition, broadcasting, recording, and virtual all-in-one equipment. , And supports wireless tally, the camera's recording can also be remotely controlled through the Kaidi device to achieve two-way control, to achieve remote control of recording, stopping and feedback of all the information of the recording. The feedback information includes the recording progress, time, capacity, and the name of the recording file, etc.
