KD-C1000SRT Super Quality Ptz Broadcast Video Conference Live Stream Station SRT Camera

1, 1-inch Exmor R CMOS imager for broadcast-quality 4K images;

2. 12x optical zoom, SRZ 4K 18x;  HD 24 times;

3. Servo motor high-speed cradle head, translation/pitch speed 0.1°~300°/ SEC;

4. SRT cable, SRT wireless;

5. 12.4 million pixels, 3840×2160 resolution;

6, 3G-SDI, SRT, HDMI 4K video output;

7. Recording MP4/MOV with time code, 1920×1080@60fps Ultra TF (MicroSD) FAT32, exFAT;

8. Live SRT, RTMP, 360°Tally lamp, dual φ9.7 mic array all-pointing microphone;

9. Application: 4K video shooting, studio, media live broadcast, multi-camera shooting;

10. Size: 160mm×155mm×230mm;  Weight: about 1.8kg;


Product Detail

Product Tags

Product specification sheet

Model number KD-C1000SRT
Imager 1Back-Illuminated Exmor R CMOS Sensor
Effective pixels 20, 400, 000Pixels
Signal system 2160/29.97p, 1080/59.94p, 1080/59.94i, 720/59, 94p, 2160/25p, 1080/50p, 1080/50i, 720/50p, 2160/23.98p, 1080/23.98p
Optical zoom 4K 12X, SRZ 4K 18X, HD 24X
Angle Pan-175°~+175°, Tilt+90°~-30°
Speed Servo motor control, Speed:Level 0.1°~300°/ s, Tilt0.1°~300°/ s
Precision Precision repeatability error <0.01
The slow mode Support
Minimum illumination 0.01 lux
SNR 55dB
Definition 3840x2160
Aperture Auto/Manual
Focus Auto/Manual
White balance Auto/Manual
Focal length f=9.3mm~111.6mm, F2.8(wide)~F4.5(tele)
The minimum distance 80mm~INF (wide), 1000mm~INF (tele)
Presetting bit Default 128
Control interface VISCA RS-485/RS-232, RJ45 (input/output), Support control,  SRT wireless
 Interface BNC(×1), 1.0 Vp-p, 75Ω, 3G-SDI OUT×2(option);SRT RJ45×1, SRT wireless Wi-Fi×1 IEEE802.11a/b/g/n/ac, USB×1, HDMI(4K)OUT×1, MIC IN×1
Wireless transmission SRT wireless, Delayed 150ms
Video coding H.264 Baseline/Main/High Profile, 4:2:0, MAX:8Mbps
Audio coding AAC LC, 32Kbps, 64Kbps, 96Kbps, 128 Kbps
Recording format MP4/MOV;1920x1080@60fps
Card Ultra TF(MicroSD)FAT32, exFAT
Live streaming SRT, RTMP
Microphone φ9.7×2 MIC (Array omnidirectional microphone, 32K sampling, I2S 48KHz, AEC, AGC, ANS)
A director prompt 360°TALLY

Product description

The KD-C1000SRT is the KDI Industrial 4K Remote wireless SRT interactive camera that combines broadcast-grade image quality with smooth,  quiet,  high-speed pan/pitch/Zoom (PTZ) operation,  coupled with flexible 3G-SDI,  HDMI,  SRT and SRT Wireless wireless bidirectional control interfaces.

Designed for remote operation, this compact and powerful PTZ camera is an ideal complement to other broadcast cameras used to capture images in hard-to-reach or unobtrusive locations.  It works just as well in a television news studio,  remote studio and live studio,  auditorium,  church,  courtroom or gym as it does in a regular classroom.  It is especially suitable for efficient multi-camera shooting under single-person operation.  The Exmor R 1.0 CMOS image sensor is capable of shooting detailed 4K video clips at 30p,  four times as many pixels as HD,  and with low light sensitivity.  High-speed precise PTZ with servo motor and unique smooth start braking technology,  and the PTZ operation with 12X optical zoom,  suitable for shooting wide-angle scenes and close-frame close-ups,  through the 18x (4K mode),  24x (HD mode) clear image zoom technology,   Further extend the range without losing any resolution.  With the telephoto conversion mode,  hd 24x zoom can be doubled to 48x.  Broadcast-grade features include the exclusive 360°TALLY lamp,  MIC input,  4K HDMI real-time lossless Ultra HD image output and SRT wireless.

Specifications

580正右上45度

Image imager type 1.0 backlight Exmor R CMOS imager

Imager (effective pixel count) 14.2 million pixels

Imager (total number of pixels) about 20.4 million pixels

Signal system: 2160/29.97P,  1080/59.94P,  1080/59.94I,  720/59,  94P,  2160/25P,  1080/50P,  1080/50I,  720/50P,  2160/23.98P,  1080/23.98P

Lux (50IRE,  F2.8,  1/30s,  Max gain)

Horizontal resolution 1800 TV Cable (3G-SDI output) (center)

Gain automatic/manual (-3dB to +33dB)

Shutter speed: 1/10000 s to 1/8 (59.94/29.97),  1/10000 s to 1/6 (50/25/23.98)

Exposure control automatic,  manual,  priority mode (shutter priority,  aperture priority and gain priority),  backlight,  point lighting

White balance automatic 1/ automatic 2/ one button/indoor/outdoor/manual

Optical zoom 12x,  SRZ 4K 18x;  HD 24 times;

Zoom 2x *1.5x,  4K resolution

Digital zoom none

Telephoto conversion mode off,  2x * 1920x1080 only

Focusing system is automatic/manual

Horizontal viewing Angle 64.6° (wide Angle)

Focal length F =9.3 to 111.6mm F2.8 (wide Angle),  F4.5 (telephoto)

Minimum object distance 1000mm (telephoto) 80mm (wide Angle)

Translation/Pitching Angle Translation: ±175° Pitching: +90°/-30°

580正前
4K-NDI-SRT后左平白

Preset 128

PTZ tracking memory 16

PTZ mobile synchronization

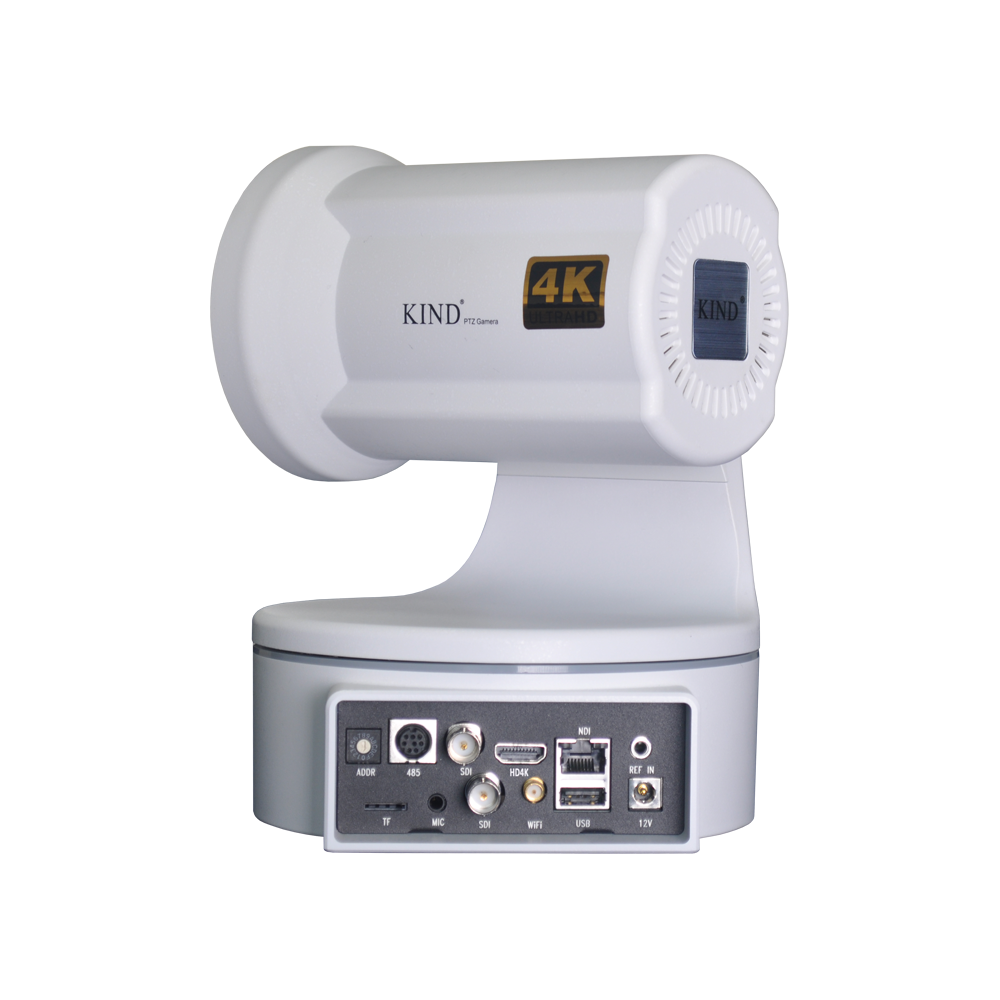

Interface: BNC (×1),  1.0 VP-P,  75 ω, 3G-SDI output ×2;  SRT-RJ45 ×1, SRT-Wireless WiFi antenna ×1 IEEE802.11a/b/g/ N/AC,  USB×1;  HDMI (4 k) x 1;  Audio interface 3.5MIC ×1 input,  line/microphone input is optional,  line: +4dBu,  microphone: -70DBU --30dBu;

HDMI gamut YCbCr,  4:2:2 RGB,  4:4:4

External synchronization input BNC,  75 ω,  HD 3 level synchronization,  STANDARD black pulse;

Camera control interface: VISCA RS-485/RS-232,  SRT-RJ45 wired bidirectional control,  SRT-Wireless bidirectional control;

Wireless transmission: SRT wireless,  support WiFi wireless transmission,  delay 150ms;

H.264 Baseline/Main/High Profile,  4:2:0,  Max. 8Mbps;

Audio encoding: AAC LC,  support 32 Kbps,  64 Kbps,  96 Kbps,  128 Kbps;

Recording format: MP4 / MOV,  with time code;  Recording format: maximum support 1920x1080@60fps;  Signal format: support line-by-line and interlaced signals;  SD card document system format support FAT32,  exFAT;  Support SRT remote bidirectional control,  remote control recording,  stop and recording progress feedback;

Ultra 128GB TF (MicroSD) memory card (optional)

Live: support SRT,  RTMP;

Built-in array microphone: dual φ9.7 microphone array,  omni-pointing,  low noise,  support 360 degrees omni-directional sound pickup,  the maximum sound pickup distance of 10 meters;  Support 32K sampling and AEC,  AGC,  ANS processing,  I2S digital audio output 48KHz;  Sound clear,  sound quality reduction,  comfortable listening,  high definition,  high reduction,  high signal-to-noise ratio,  low distortion,  low noise;

Dc input: DC jack 12DC,  DC10.8V-13.2V,  power connector type IEC60130-10 (JEITA standard RC-5320A) TYPE4;

Guide tip: 360°Tally lamp;

Attribute

High speed, smooth pan/pitch/zoom (PTZ) operation

The pan, pitch and zoom functions use smooth, fast and almost silent remote control operation to accurately reproduce the picture or track moving objects.  Equipped with smooth zoom and high speed, variable speed pan/pitch modes, creating accurate anti - shake camera movement.  PTZ tracking memory allows continuous movement of the memory and tracking camera when necessary.  PTZ Motion Sync smoothly synthesizes the independent movement of translation, pitch and zoom. The PTZ Motion Sync is equipped with the unique precise start braking technology to ensure that the high-speed camera stops at the preset position, creating a seamless transition with professional standards.  The preset bit for the pan/pitch/zoom operation is up to 128.

4K video

The camera uses a large target surface, type 1.0 backlit Exmor R CMOS imager, and delivers broadcast-grade image quality in rich detail 4K 30p, with four times as many pixels as HD.  It also captures high-definition 60p video, ideal for fast moving sports and action scenes.

24p movie image

The camera also works in 24p mode, shooting full-on cinema-style video clips.  High quality Zeiss Vario-Sonnar T lens with 12 x optical zoom and 18 x 4K shooting and 24 x HD shooting using clear image zoom technology, the high quality Zeiss Vario-Sonnar T lens with 12 x optical zoom range is suitable for wide Angle scenes and close up shots.  The Sharp Image Zoom technology can be scaled up to 18x 4K or 24x HD zoom without losing detail.  In addition, telephoto conversion mode doubles this range again to 48x zoom while maintaining 1920x1080 resolution.

Excellent low light sensitivity

The KD-C1000SRT  can capture clear low-noise video images in brightness conditions as low as 1.7lx and is ideal for shooting in dim halls and theatres.

Flexible installation

It can be integrated in a variety of environments and uses AN RJ45 Ethernet cable to transmit SRT video, audio, TALLY, power supply, PTZ control, remote bidirectional control, recording, and information notification in real time, reducing cabling requirements, difficulties, and costs. Remote operation

Pan/pitch/zoom and other camera Settings can be controlled using the attached infrared remote control, or remote control, setup, switch, and recording and live with an optional Cady All-in-one or virtual All-in-one that can control multiple cameras.

Synchronous phase-locked

Synchronous phase-locking simplifies integration with other systems in a multi-camera live broadcast environment.

Wireless SRT

Multiple KD-C1000SRT interactive cameras transmit wirelessly together without any interference, and there is no distance limit. As long as there is network signal, audio and video signals can be transmitted statively. At the same time, the picture is clear and smooth, the delay is less than 150ms, and there is no tail.  First of all, the camera can push, pull, shake, bends down, back wireless remote control, real-time control can be achieved by Katie whole series of mining information recorded all-in-one and virtual machine equipment for real-time control, and support wireless Tally, the camera recording can also be remotely via kaidi two-way control equipment, realize the remote control to record, stop and all of the information feedback,  The feedback information includes the recording progress, recording time, recording capacity, and recording file name.

360 ° Tally lamp

The KD-C1000SRT features a 360°Tally lamp for live broadcasting.
