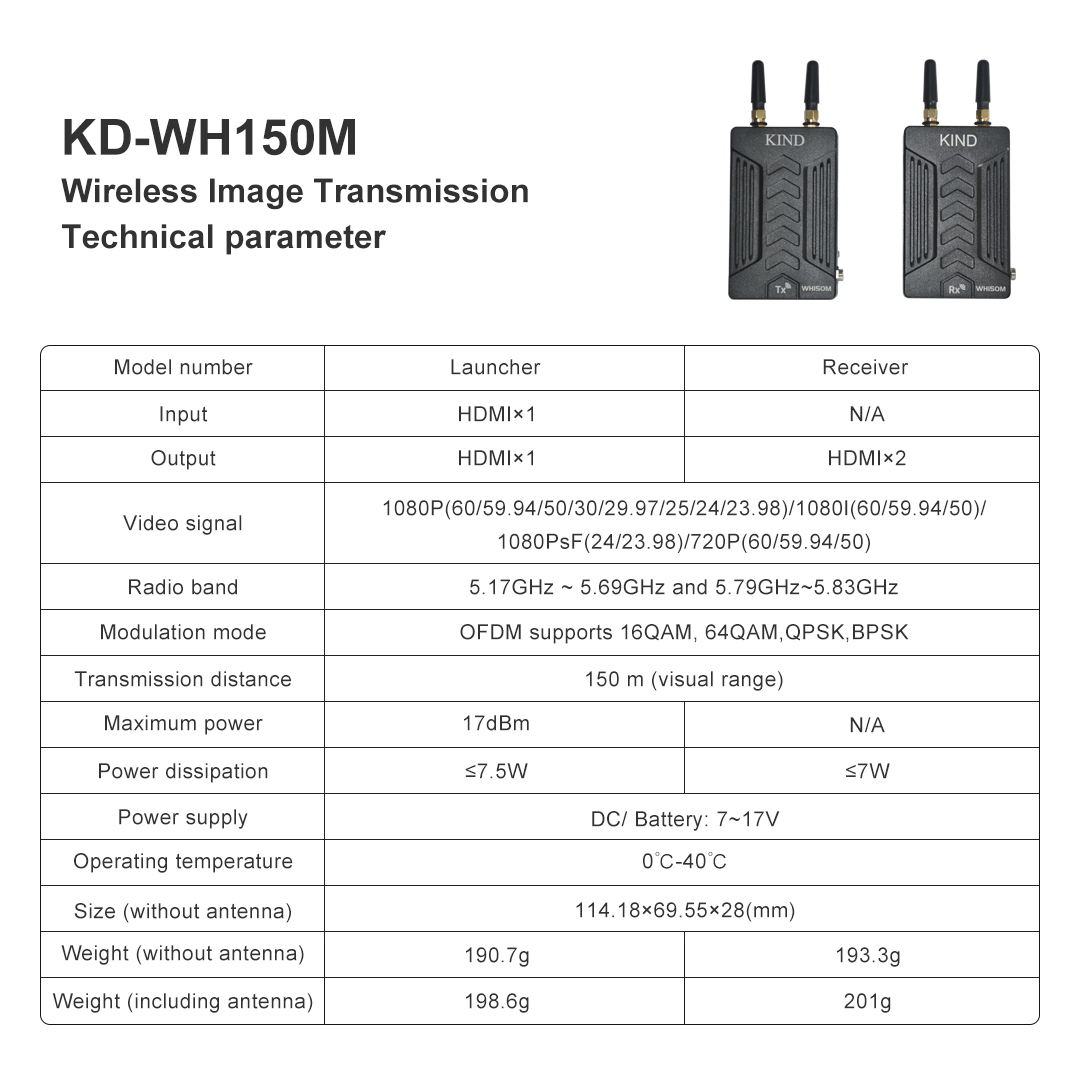

Wireless Image Transmission KD-WH150M

1. Input: Launcher: HDMI×1;

2. Output: Launcher: HDMI×1;

Receiver: HDMI×2;

3. Video signal: 1080p60/59.94/50/30/29.97/25/24/23.98, 1080i60/59.94/50, 1080PsF24/23.98, 720p60/59.94/50;

4. Radio band: 5.17GHz ~ 5.69GHz and 5.79GHz~5.83GHz;

5. Modulation mode: OFDM supports 16QAM, 64QAM, QPSK, BPSK;

6. Transmission distance: 150m;

7. Maximum power: Launcher: 17dMb;

8. Power dissipation: Launcher ≤7.5W;

Receiver: ≤7W;

9. Power supply: DC/Battery: 7~ 17V;

10. Operating temperature: 0~40°C;

11. Size: 114mm×69mm×28mm;

weight: Launcher: 190g;

Receiver: 193g.

Send email to us

Product Detail

Product Tags

1 Piece

$277

Product Introduction

This system is divided into a transmitter and a receiver. It adopts the latest generation of encrypted transmission technology, has strong anti-interference performance, can realize real-time wireless transmission of HDMI audio and video signals, single-channel HDMI digital audio transmission, automatic pairing connection, and is equipped with a DC power supply interface. The wireless video transmission distance under line-of-sight conditions reaches 150 meters. It is compact, powerful, easy to carry, and has stable signal quality.

HDMI wireless transmission

Supports up to 1080P50/60Hz high-definition HDMI audio and video wireless transmission.

150-meter transmission distance

Under outdoor line-of-sight conditions, the effective wireless transmission distance can reach 150 meters.

Wireless frequency

This system uses 5.17GHz~5.69GHz and 5.75GHz~5.83GHz wireless frequency bands.
