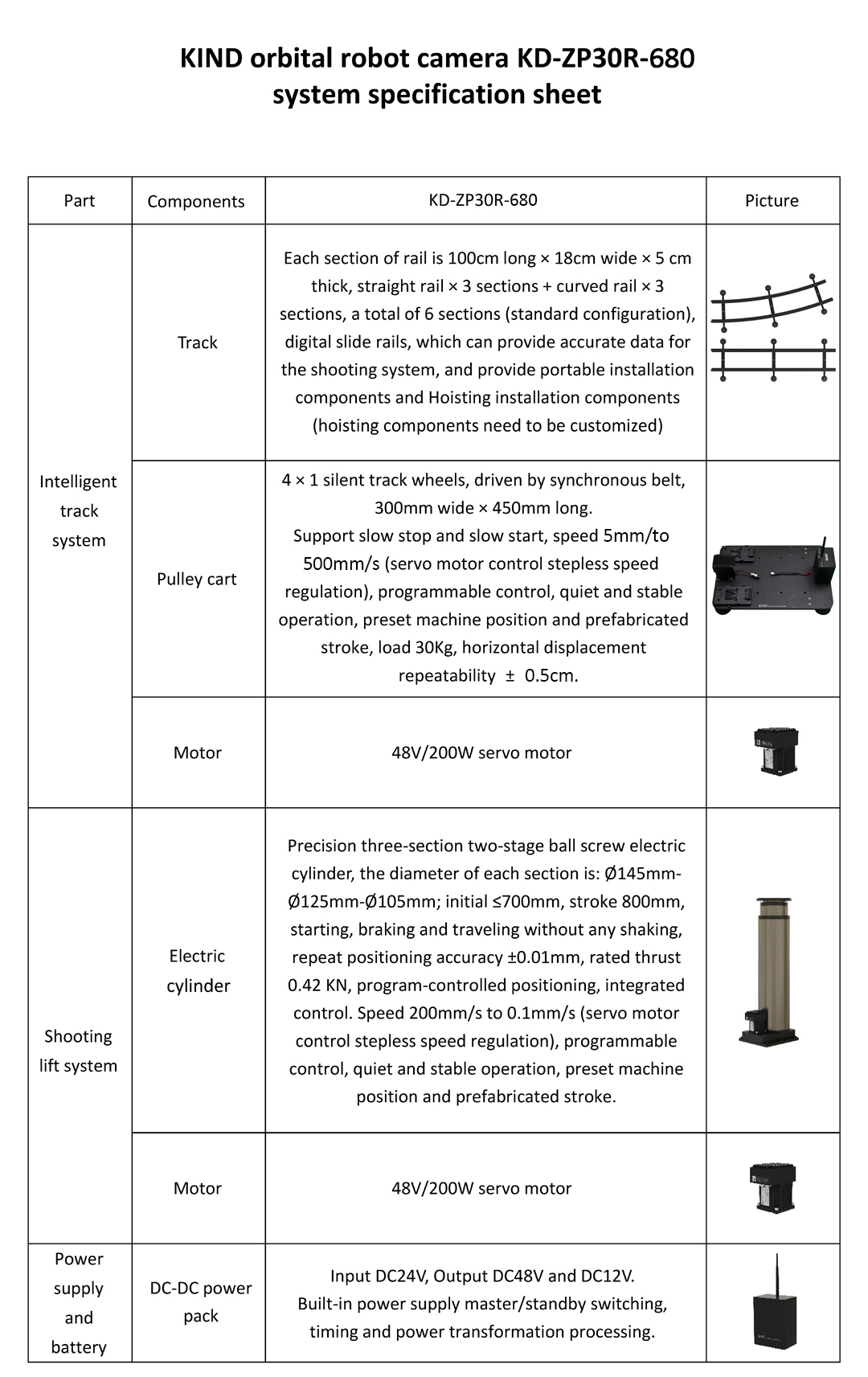

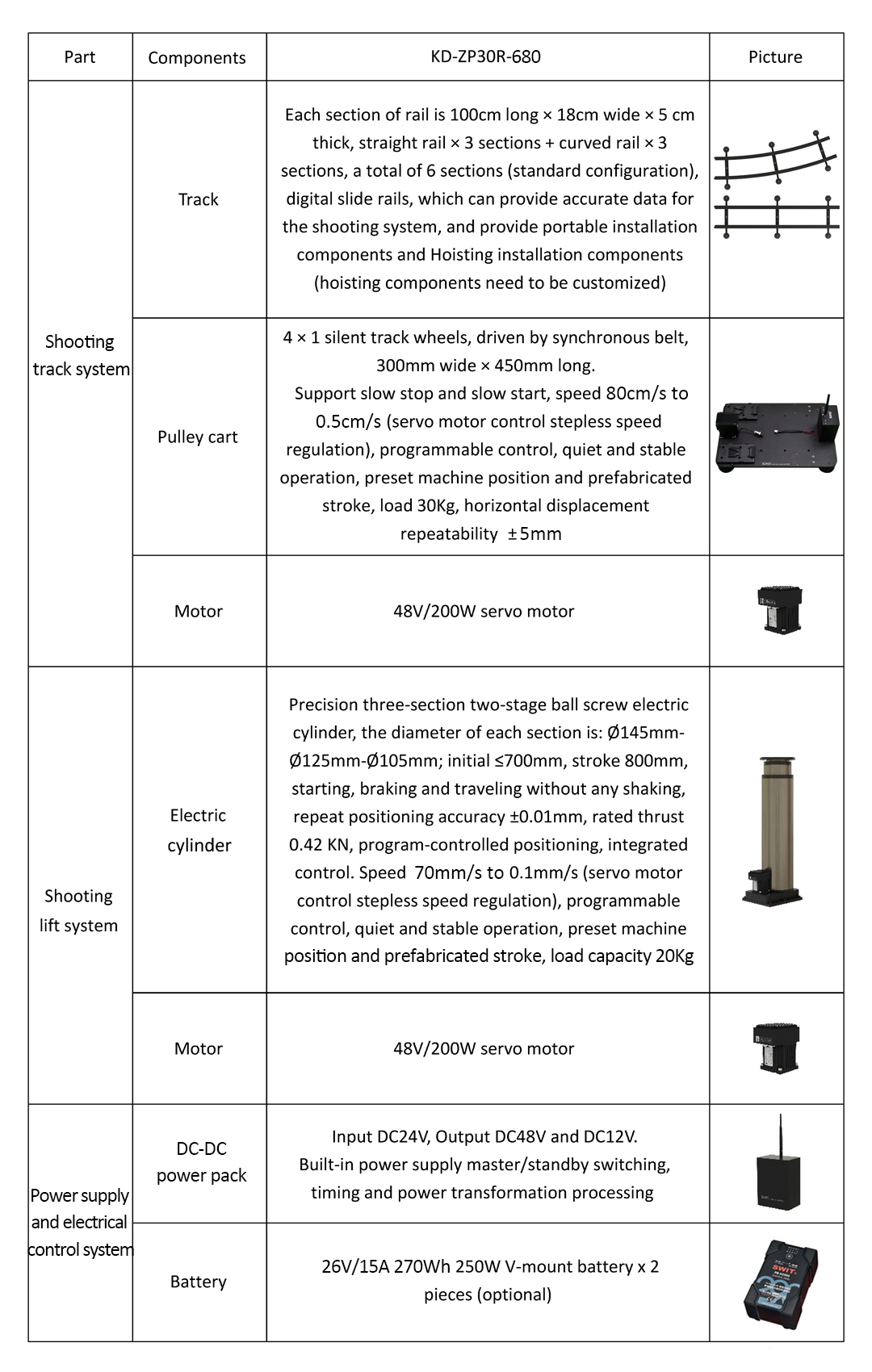

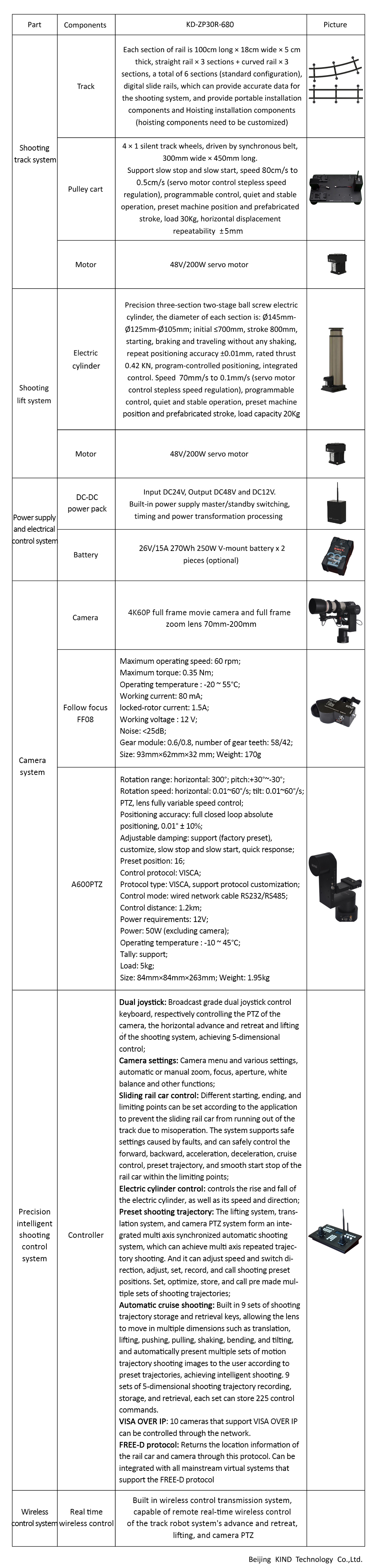

KIND Orbit Robot Camera KD-ZP30R-680

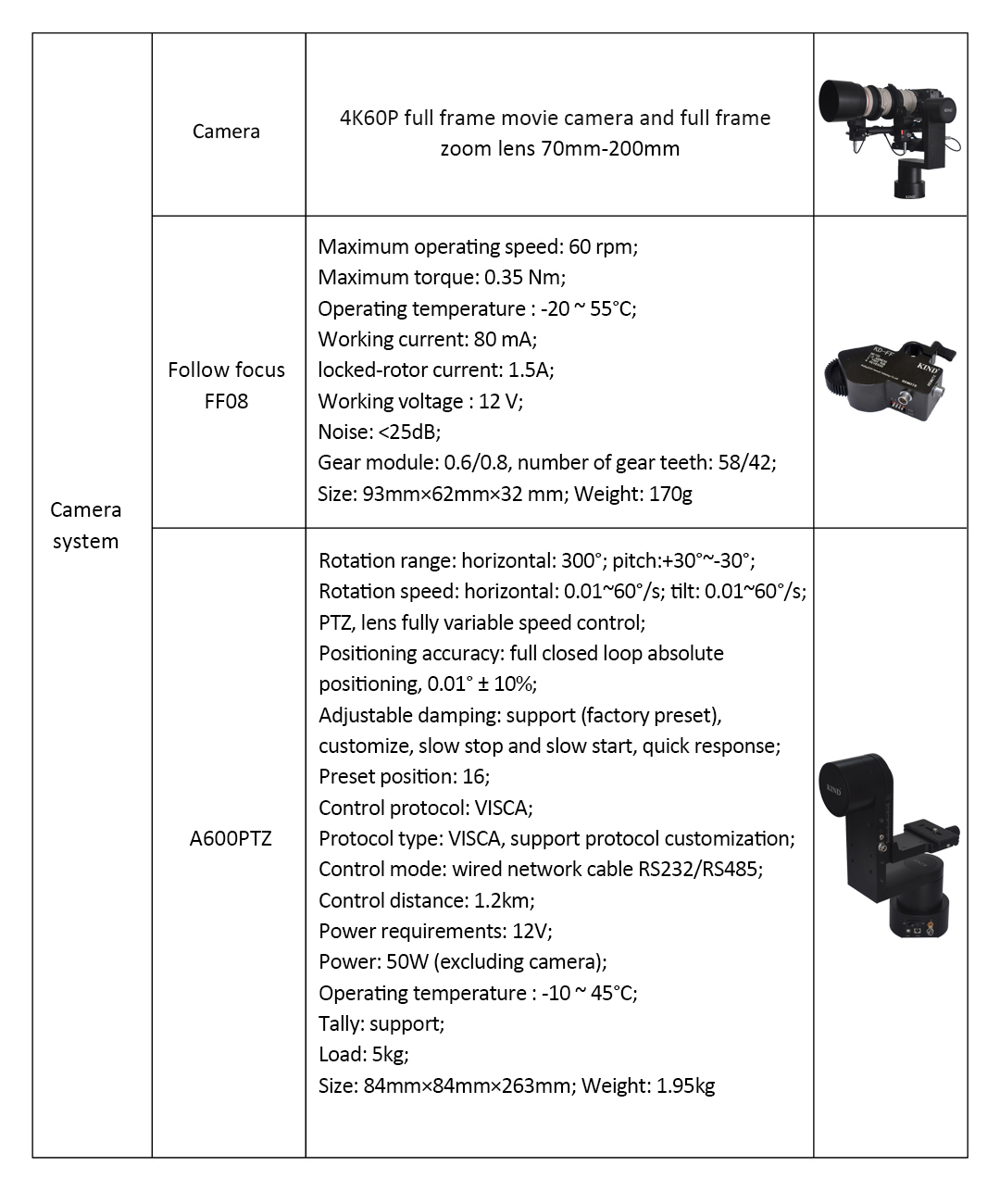

1. Camera: 4K60P full frame movie camera and full frame zoom lens 70~200mm;

2. Lifting: Precision three-stage ball screw servo electric cylinder lifting system;

3. Height: initial ≤700mm, stroke 800mm, repeat positioning accuracy ±0.01mm; speed: 70mm/s to 0.1mm/s, full servo stepless speed regulation;

4. Pulley cart: 4×1 silent track wheel, synchronous belt drive, full servo intelligent control movement, stepless speed regulation, repeat positioning accuracy ±5mm, speed: 80cm/s to 0.5cm/s;

5. Track: Intelligent shooting and splicing track, standard three bends and three straight, 6 meters in total, expandable;

6. Motor: one for lifting and one for translation, 48V/200W servo motor and electric control system;

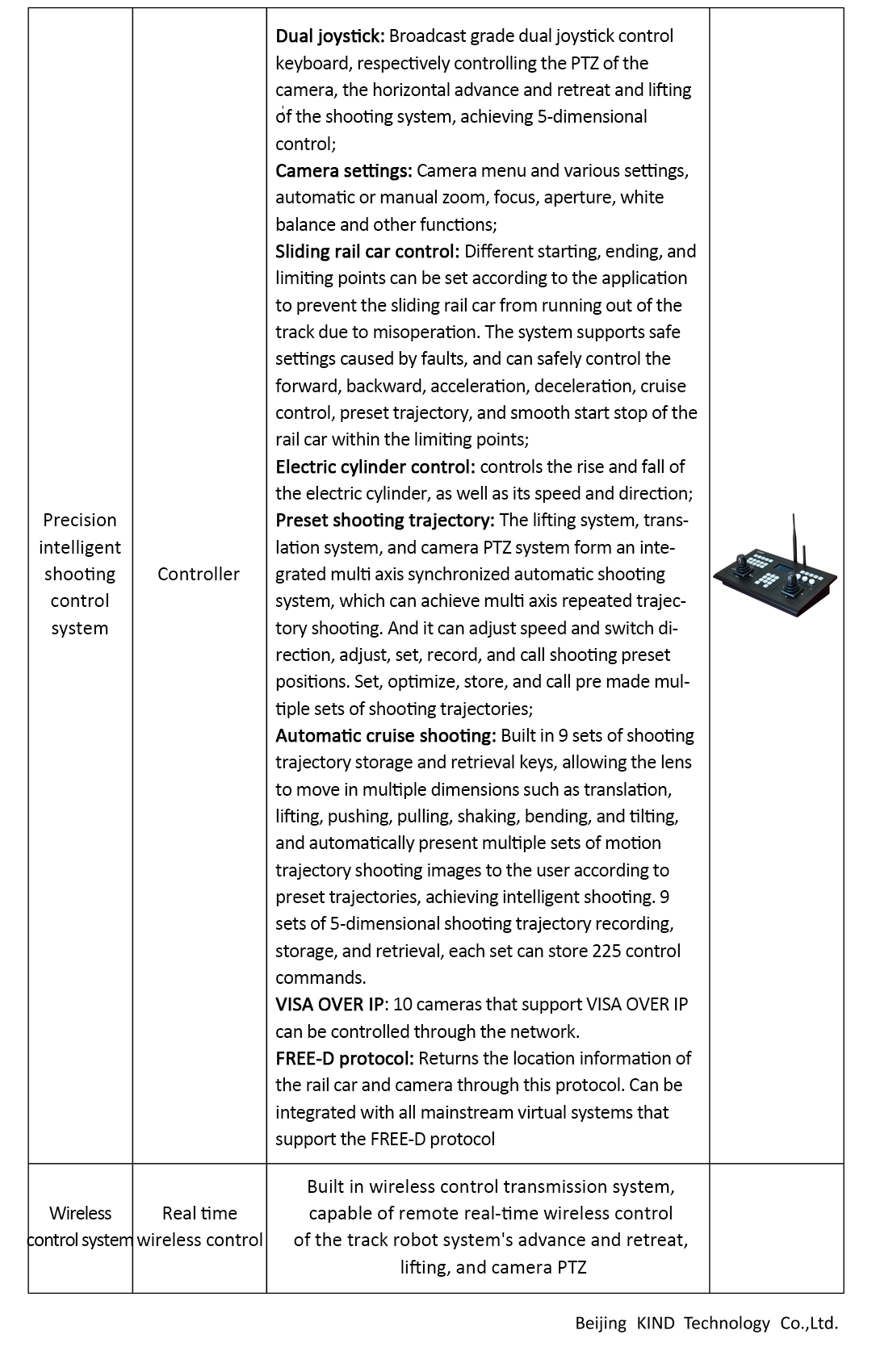

7. Control keyboard: precise intelligent shooting trajectory control system and control keyboard;

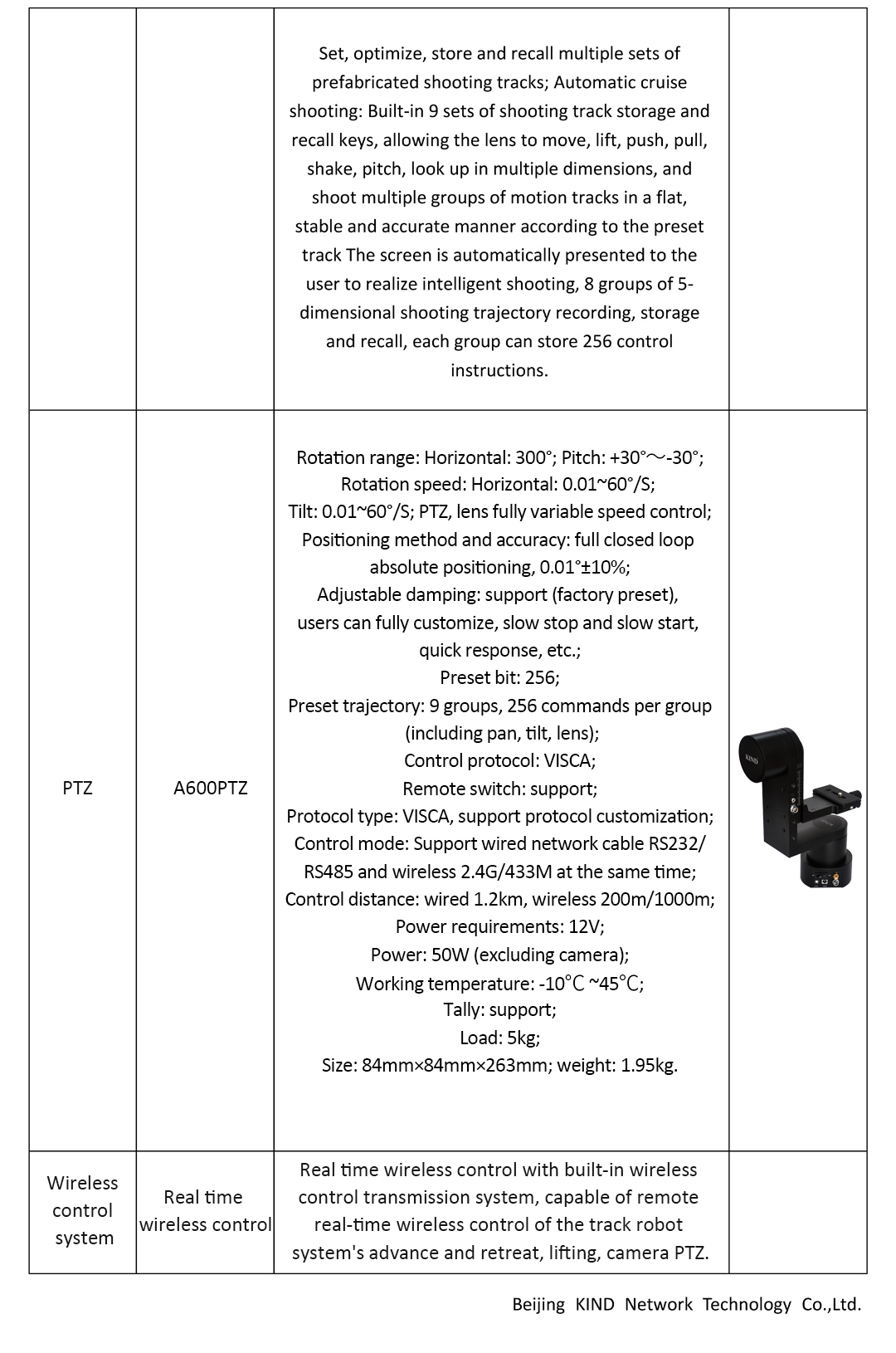

8. PTZ: broadcast fully servo KD-A600PTZ;

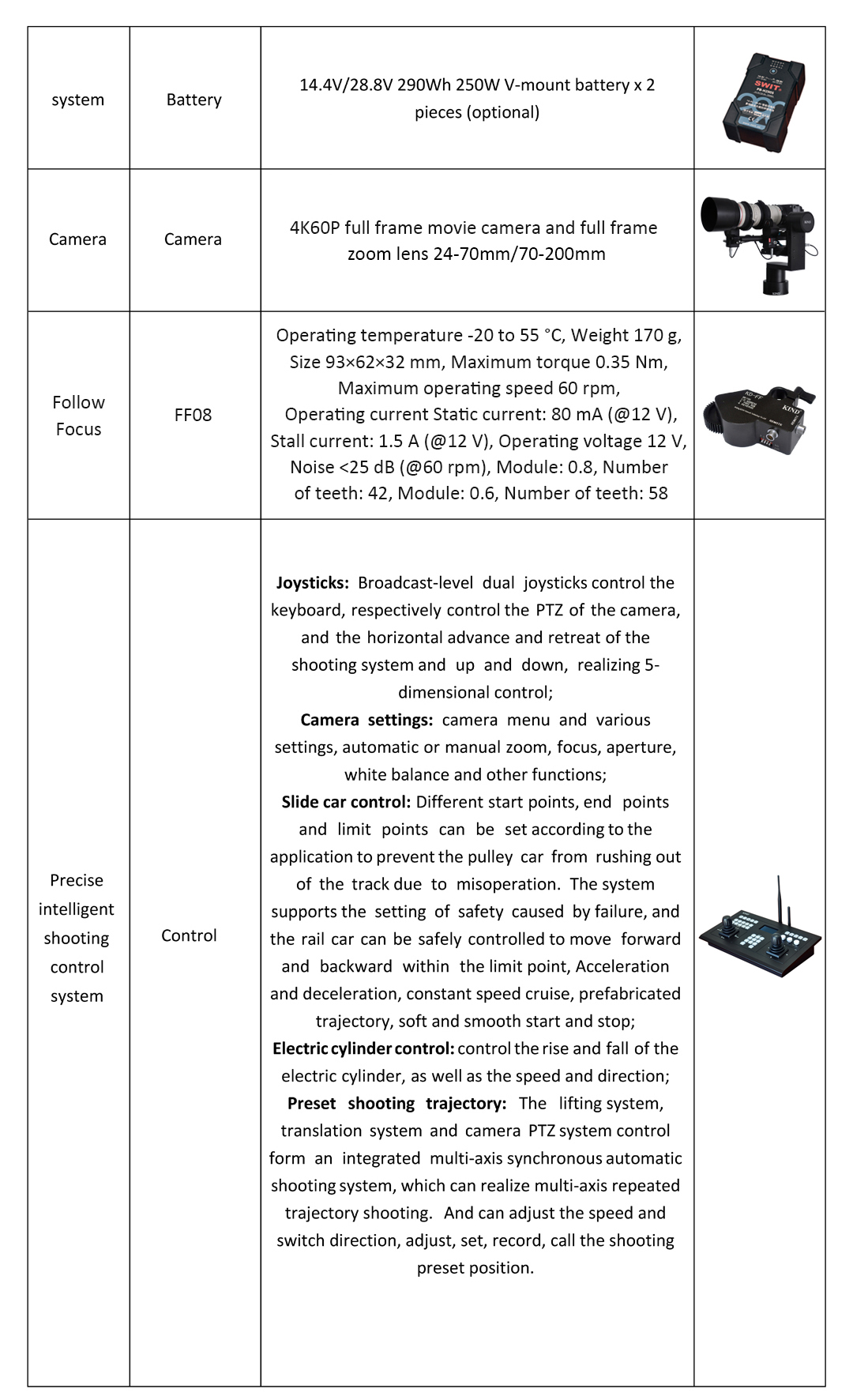

9. Follow Focus: broadcast follow focus supports cascading KD-FF06/08;

10. Transmission: wireless control system;

11. Battery: 26V/15A 270Wh V-port battery × 2 (optional);

12. Installation: support mobile installation and fixed hoisting, and provide all installation parts.

Send email to us

Product Detail

Product Tags

1 Piece

$19990

Application

Product Technical Characteristics

1. The track car motor, lifting pole motor, and PTZ motor are all driven by DC servo motors. Dual closed-loop control of position and speed. Accurate position and stable speed;

2. The track car, PTZ, and follow focus all adopt slow stop and slow start technology. Make acceleration and deceleration smoother and easier to control;

3. The speed levels of movement/lifting, Pan/Tilt, Zoom, and focus can be independently set. Suitable for different application scenarios and usage habits;

4. The movement, lifting, Pan, and Tilt can be independently set in reverse and used after the installation of the ceiling;

5. Support the setting, calling, and deletion of 9 preset points;

6. Supports setting, calling, and deleting 9 trajectories. Each trajectory supports a maximum of 225 commands;

7. Supports Visca protocol (RS232 and RS485 interfaces), with adjustable baud rates (9600, 115200);

8. Supports the Visca Over IP protocol and can control the camera through a network port;

9. Support FREE-D protocol. Return the location information of the track car and camera through this protocol. Can interface with all mainstream virtual systems that support the FREE-D protocol;

10. The actions of preset points are controllable. The movement sequence, speed, and time of movement, lifting, Pan, and Tilt can be set.
