KD-LC-16UHN High-Quality Equipment Portable Reality Commercial Video Cameras Live Cast

1. Video processing:12G-SDI hardware 4K switching station, 12G-SDI+HDBaseT+HDMI2.0+NDI (NDI, NDI HX wireless)+SRT+Stream (push, pull)+DDR (video, picture, PPT, video playback), mixed switching;

2. Audio processing:Digital mixer+Analog mixer+Audio hardware delay device+Audio and video synchronizer

3. REC:3840×2160@60fps,SD Card FAT32exFAT,MP4/MOV;

4. Live:Http,Rtmp.SRT;

5. Audio and video hardware delay broadcast system;

6. Guide calls and TALLY;

7. Captioning system, slow motion system, virtual keying system, audio and video editing system;

8. AUT switching;

9. Application: studio, education recording, media live broadcast, all kinds of meetings and activities live broadcast;

10. Size: 425mm×340mm×120mm;  Weight: about 5kg;


Product Detail

Product Tags

Product specification sheet

Model Number KD-LC-16UHN
Power supply INPUT: AC110V-240V, 50-60Hz, 5A; OUTPUT:12V 25A
Operating temperature 0-40℃
Size (L×W×H)425mm×340mm×120mm
Weight 5kg
Video input 12G-SDI×8, HDBaseT×4, HDMI2.0×2, NDI×6, SRT×6, Stream×6, 3840×2160@ 60fps
Video output PGM output HDMI2.0×1, 12G-SDI×1, NDI×1
Audio output Stereo (L, R) IN RCA×5, MIC XLR×5
Audio output Stereo (L, R) OUT RCA×1, Balanced XLR OUT×2, Monitor3.5×1, Playback monitor3.5×1, The director calls MIC3.5×2
Other interface USB2.0×2, USB3.0×2, RJ451000M×1
A director of communication TALLY MINI XLR OUT×8, Director calls
Mix switch 12G-SDI×8, HDMI×2, HDBaseT×4, NDI×6, SRT×6, Stream×6, DDR×2, 384×2160, RGB4:4:4, YCbCr4:4:4
Sound console Digital mixer×5, Analog mixer×5, Audio hardware delay device×2
Recording 3840×2160@60fps, SD Card FAT32\exFAT, MP4/MOV
Live streaming http, rtmp
Delay broadcast Audio and Video hardware delay broadcasting system; (Non – Standard)
Subtitle CG-Alpha DVE, Video playback, Virtual matting system
System hardware Intel i9CPU 9900T, RAM 16G, 1TB SSD

Product description

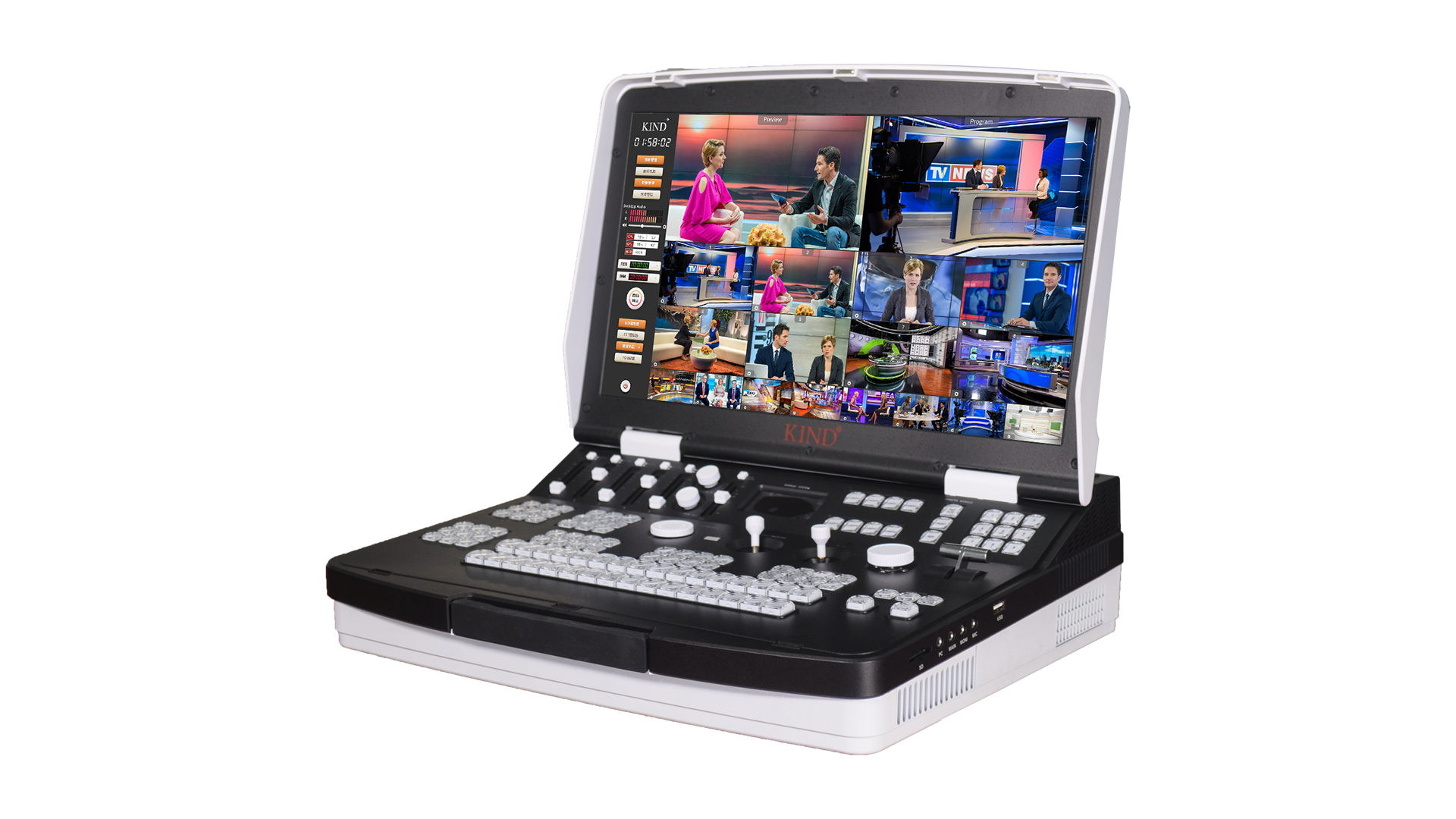

KD-LC-16N1

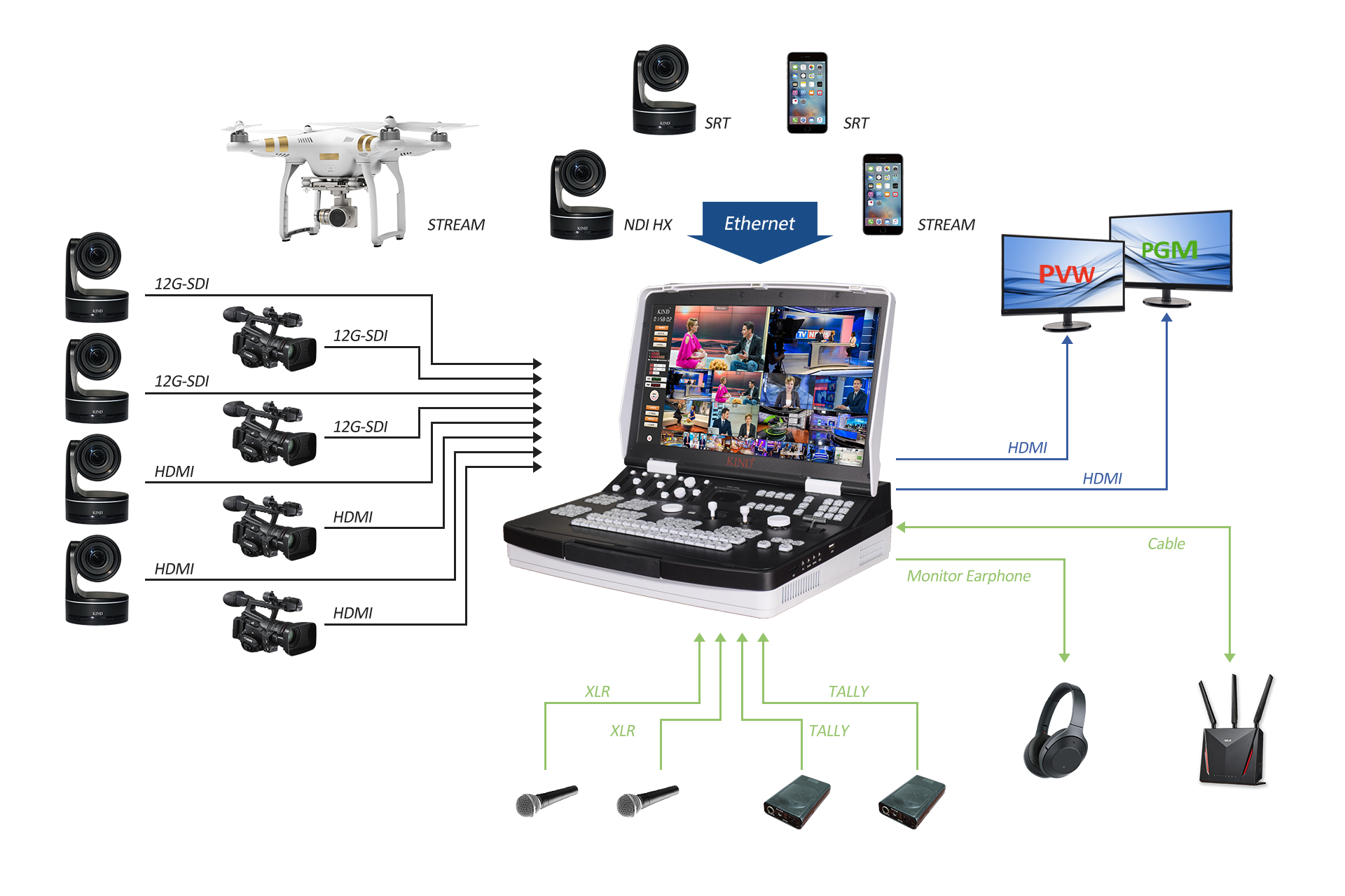

1. Video input: 12G-SDI×8, HDMI (2.0) ×4, HDBaseT (20G) ×4, NDI×6, SRT×6, Stream×6, DDR×2 Output: SDI×2, HDMI×2, NDI×1, SRT×1;

2. Built-in 16-channel 4K mixed stunt platform, hardware full interface mixed input stunt switch, built-in picture-in-picture any position rocker controller, broadcast grade switch T push rod, achieve 4:4:4 lossless hard cutting;

3. 4K mixed core, 4K hardware signal lossless switching can be realized at the same time input signal and NDI, Stream, local material DDR (picture, video, PPT, playback, etc.) file switching, hardware rotating encoder control DDR pause, forward and backward selection of player point and control playback, Stream channel, support push Stream and pull Stream mode,   Hundreds of hardware switching special effects;

4. Audio input: stereo (LEFT, RIGHT) IN×5;  Professional microphone (48V) XLR IN×5;  Stereo (LEFT, RIGHT) OUT×1;  Balanced output XLR OUT×2;  SDI embedded audio IN×5, HDMI embedded audio ×2, HDBaseT embedded audio ×4;  Main output monitoring 3.5×1;  Play monitoring  3.5×1;  MIC 3.5×2;

5. Built-in Digital + Analog mixer, audio embedded and unembedded, realize the mixing of digital audio and analog audio, provide SDI×5, HDMI×2, HDBaseT×4, digital audio embedded/unembedded input hardware switch ×5, Can be tuned and mixed with digital audio×5, analog stereo×5, MAC XLR×5 and other external input audio, modulated audio can be embedded as HDMI, SDI output, at the same time can be separated into stereo output, built-in 48V phantom power supply, stereo ×1 output, Broadcast monitoring 3.5×1, Guide talk headset 3.5×1;

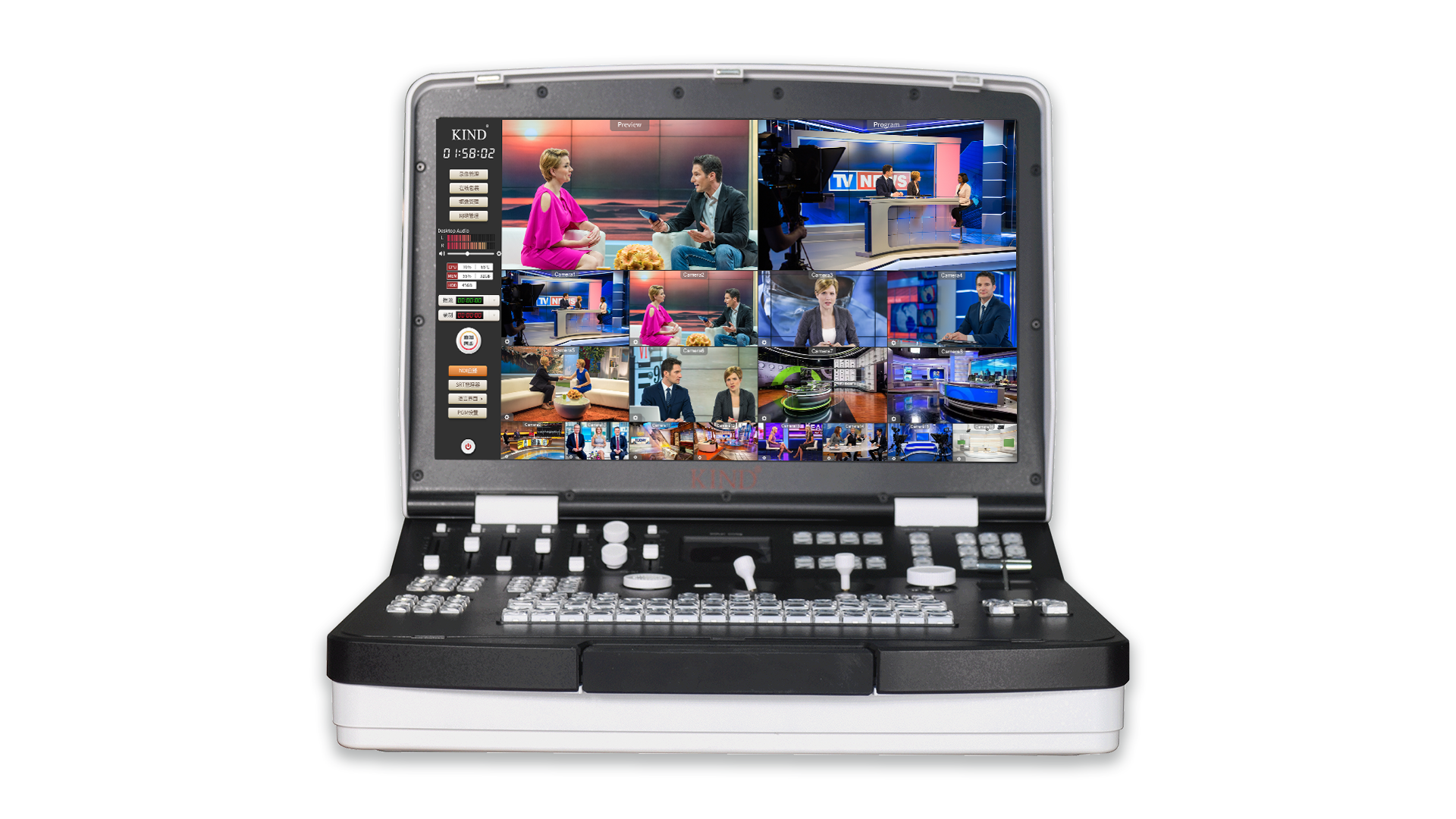

KD-LC-16N

6. Built-in hardware audio delay device, through two hardware encoders for audio processing twice, first to achieve the input of digital audio and analog audio synchronization, and then to achieve accurate audio and video synchronization;

7. Camera PTZ control, built-in hardware rocker controller and broadcast class hall zoom controller, control 8 cameras push, pull, shake, tilt, tilt;  8 groups of camera selection keys, 9 groups of preset shortcut keys and camera menu setting shortcut keys;

8. TALLY of the built-in hardware 4-channel guide call system and 4-channel guide prompt system;

H6757d7074ad74a3aae2aceebcfbe5fd3M

9. Built-in CG-Alaph subtitle and online packaging system, realizing more than ten layers of Alaph dynamic subtitle, Angle mark and platform mark, etc. 3D objects and light effect, dynamic material, DVE direct video, video material and other ways to achieve an all-round visual packaging of live programming;

10. Built-in image keying system, virtual image keying effect can be adjusted by hardware rotary encoder, and the virtual composite image can be used as one signal source to switch and combine with other signals and files through t-type damping switch push rod;

11. Built-in video coding system, recording unit: 3840×2160@60fps,SD Card FAT32\exFAT, MP4/MOV, built-in WMS and FMS publishing system and provide FMS audio and picture synchronization adjustment;

12. Built-in broadcast-level hardware HD recording system to meet the requirements of broadcast-level segment recording, recording files are broadcast-level MP4 files with constant frame and constant code, and SD card slot is provided;

13. Power off through, when the system power off the fourth channel SDI or HDMI signal through PGM;

Built-in broadcast-grade nonlinear editing system;

15. 64 bit coding system, 4K coding core, i9 9900CPU,16G memory, 1T solid state disk, 17.3 inch display of portable acquisition and recording all-in-one machine;

16. WIN10 operating system;

17. The volume and weight of the equipment shall meet the standards of cabin baggage carrying in domestic airlines.
