KD-3DVC-6N Factory Direct Sales Of High-Quality Tv Studio Portable 3D Virtual All-In-One Machine


KD-3DVC-6N Factory Direct Sales Of High-Quality Tv Studio Portable 3D Virtual All-In-One Machine

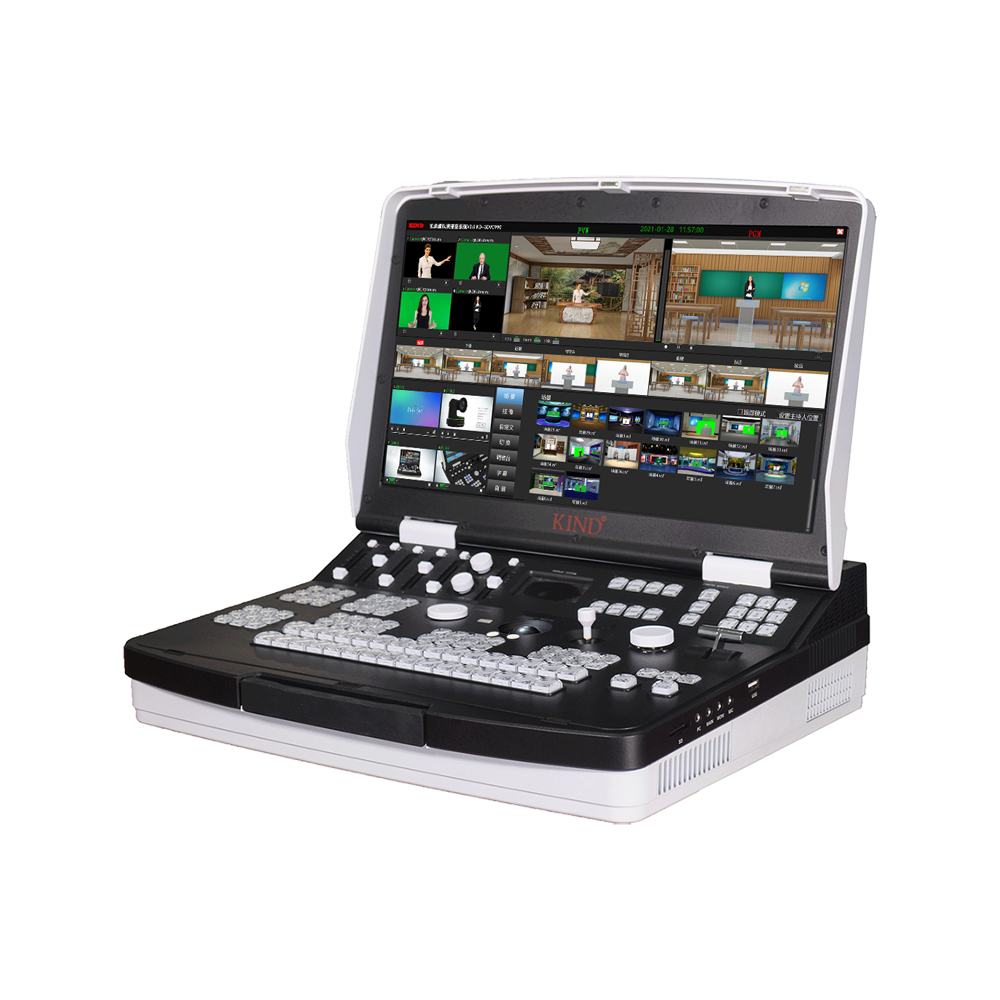

1. Portable 3D virtual all-in-one machine, easy to use;

2. 4-channel virtual keying system;

3. SDI×4, NDI×6, SRT×6, Stream×6, HDMI×1 input;

4. Digital mixer + analog mixer + audio delay + audio and video synchronization regulator;

5. Virtual camera PTZ + camera PTZ;

6. 16-way switching + virtual interactive studio;

7. Virtual studio with mobile tracking function;

8. Support flexible display ring screen background scene;

9. Applications: TV stations, virtual studios, micro-classes, virtual classrooms;

10. Size: 425mm×340mm×120mm; Weight: about 5kg;

Product Detail

Product Tags

1 Pieces


Product specification sheet

Model KD-3DVC-6N
Power supply INPUT: AC110V-240V,50-60Hz,5A; OUTPUT:12V 25A
Operating temperature 0-40℃
Size 425mm×340mm×120mm
Weight 5kg
Video input SDI×4,HDMI×1,NDI×6,SRT×6,Stream×6
Video output HDMI×1,NDI×1,SRT×1
Audio input Stereo (L, R) IN RCA×5,MIC XLR×5
Audio output Stereo (L, R) OUT RCA×1,Balanced XLR OUT×2
Other interfaces USB2.0×2,USB3.0×2,RJ45×1
Switch Camera×4,NDI×6,SRT×6,Stream×6,DDR×2,Virtual camera×8
Mixer Digital mixer SDI×4,Analog mixer(XLR\RCA)×5,Audio hardware delay device
Record High definition video MPEG2,MP4
Live streaming Rtmp
Virtual 4 channel virtual matting system,3D virtual one
Subtitle CG-Alpha DVE
Camera PTZ Virtual PTZ,Camera PTZ
Track virtual Virtual studio with mobile tracking
Studio Interactive virtual studio, support flexible screen ring screen background scene
Configuration Intel i9CPU 12900T,DDR32G,1TB,8G GPU
System Windows 11

Product description

KIND 3D virtual machine LIVEVR STAITON KD-3DVC-6N technical parameters

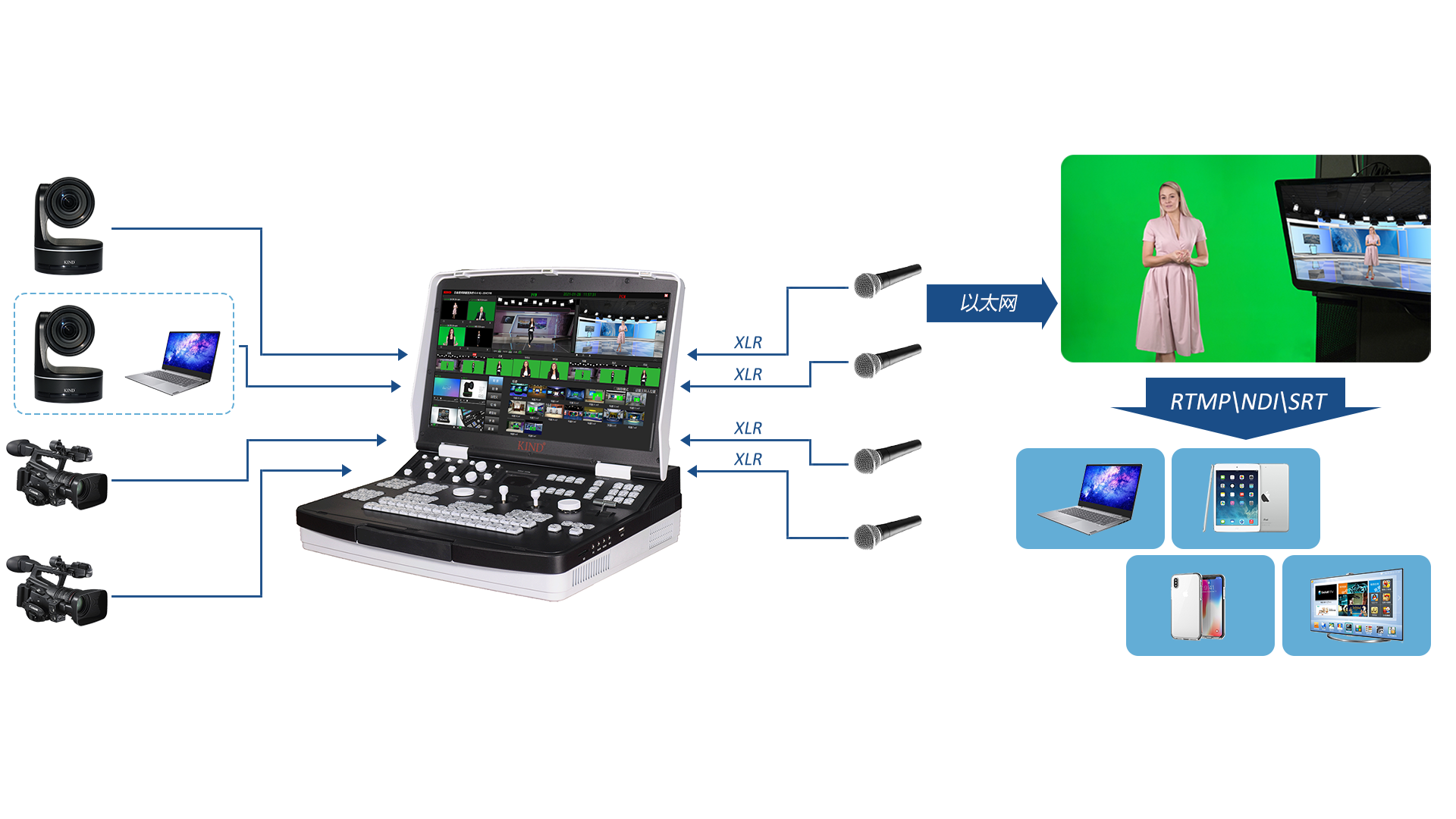

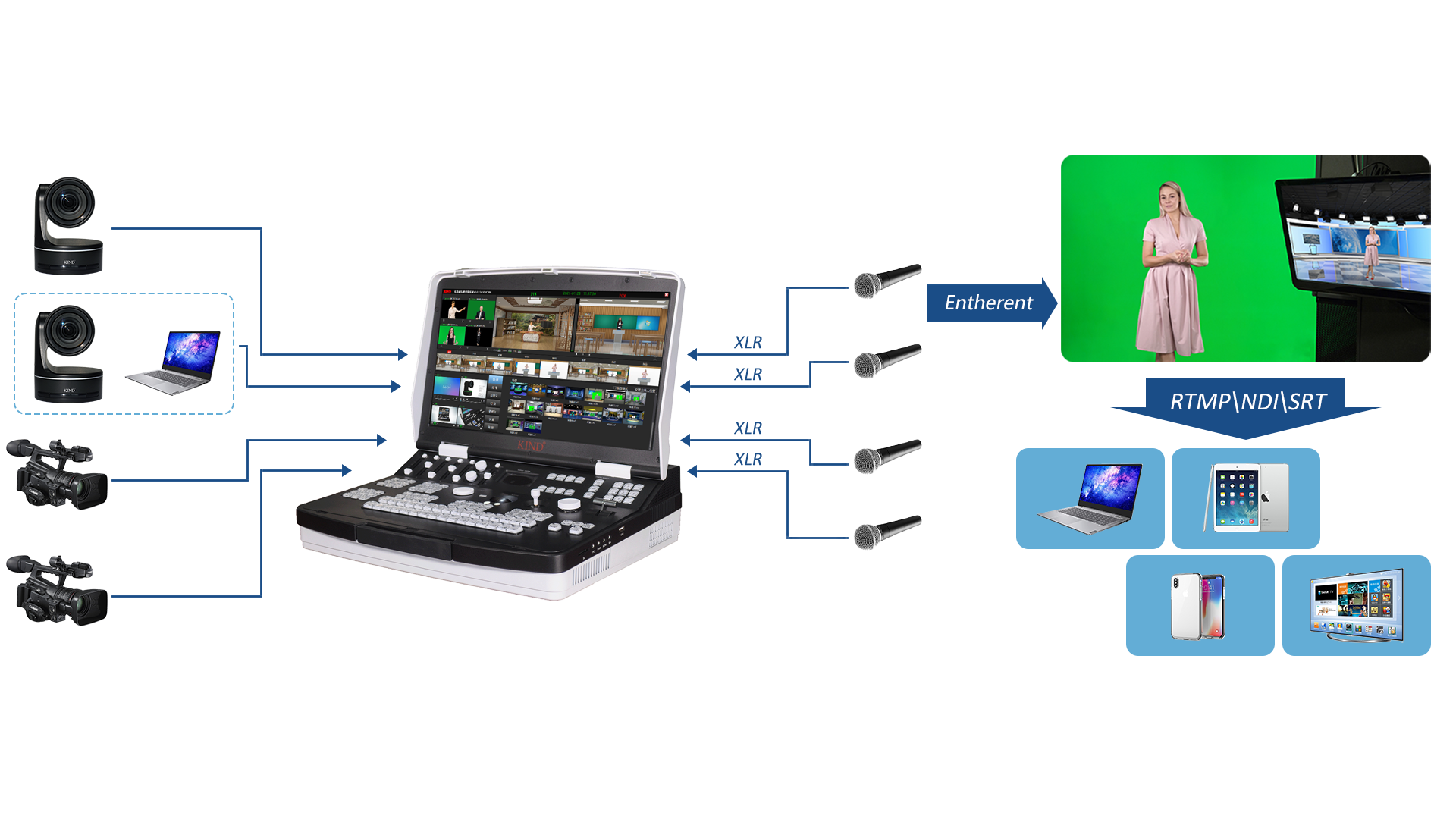

1. Video input: 3G-SDI IN×4, HDMI IN×1, NDI IN×6, SRT IN×6,  Stream×6, the resolution is up to 3840×2160;

2. Video output: PGM output HDMI ×1,NDI ×1,SRT×1;

3. Audio input and output: support professional microphone input XLR IN×5 (with 48v phantom power) and audio balance input XLR IN×5, stereo input RCA (L, R) IN×5; 4 sets of SDI digital digital audio input; Audio balance output XLR OUT×2, stereo output RCA(L, R) OUT×1; 1 set of SDI digital embedded audio output, 2 sets of HDMI digital embedded audio output;

4. Built-in digital mixer + analog mixer, audio embedding and de-embedding, realizing the mixing of digital audio and analog audio, the modulated audio can be embedded as SDI output and HDMI output, and can be separated into stereo output at the same time , Provide 6 sets of hardware faders to adjust the volume and 6 sets of hardware switches to control the sound selection, stereo ×1 output, broadcast monitor Ф3.5×1, playback monitor Ф3.5×1, direct broadcast headset Ф3.5×1;

5. Built-in hardware audio delayer, through the hardware encoder for audio processing, to achieve precise synchronization of audio and video;

6. Built-in PTZ camera CCU control unit, through the hardware joystick controller and broadcast-level Hall zoom controller, respectively control 8 cameras to push, pull, pan, tilt, and tilt. 8 groups of camera selection buttons, 9 groups of preset shortcut keys and camera menu setting shortcut keys, which can remotely control and set the camera's white balance, aperture, focal length, color and other chromaticity and brightness adjustments;

7. Tally: Built-in 8 sets of hardware guide call system and guide reminder system Tally, you can call separately, group calls arbitrarily, one-key all-pass and one-key close, each channel independent call interface Micro XLR -6 type interface × 8 (optional), each interface provides independent two-way talk, tally and power supply;

8. 8 sets of CG-Alpha hardware shortcut keys, through subtitles and online packaging hardware shortcut keys, single-key operation to execute the preset CG-Alpha system, to meet the needs of on-site subtitles and online packaging;

9. Provide 3 groups of 8 hardware SOURCE selection keys in each group, intuitively and quickly select SDI, NDI, SRT, Stream and DDR and other signal sources, with 16 channels of multi-track switching;

10. Special effect switcher: built-in 16-channel switcher, 16×2 switch buttons and T-shaped damping switch push rod, 16-channel special effect switcher includes 8 channels of virtual machine positions, 6 channels of external signals, and 2 channels of local resources (video, Image, PPT, VGA, video playback), provide CUT key and TAKE key;

11. Surveillance display: 17.3-inch 1920×1080 high-definition display;

12. Double rocker arms: Built-in hardware control joysticks, which can control the push-pull panning of the PGM and PVW virtual lens respectively, and realize the push-pull panning of the double rocker arm lens. At the same time, there are precise control buttons for the rocker arm to facilitate the lens adjustment. Precise control;


13. System configuration: i9 12900T or higher CPU, DDR5 32G memory, 1TB hard disk, 8G or higher independent graphics card, WIN11 64-bit operating system, 64-bit acquisition, encoding, recording, live broadcast, keying, 3D and online packaging system. Others: 1000M RJ45×1, USB2.0×1, USB3.0×1;

14. Virtual studio function: virtual keying can be performed on four channels at the same time;

15. At least 4 channels of 1920×1080 high-definition camera signals or signal inputs of other high-definition equipment can be connected at the same time. The dual-channel system meets the requirements for 4 cameras to be displayed on the output screen at the same time;

16. Adopting trackless virtual studio technology, without moving or operating real cameras, the effect of pushing, pulling, shaking and shifting each camera lens in the program production process can be realized;

17. Built-in chroma key for 3D virtual studio system;

18. Built-in virtual mixer, which can adjust the volume of microphone and media material files in real time;

19. It has a one-key keying function, and can save and call different keying parameter settings independently;


20. 3D virtual studio can use the 3D joystick to control the movement of characters and scenes, and easily realize various push, pull and pan actions;

21. The system can receive direct signals from other cameras, video players, or computers, and display them clearly on the TV wall in the virtual scene in real time;

22. Provide the function of replacing the virtual large-screen material in the virtual scene in real time;

23. Provide previews of multiple virtual shots;

24. Provide a local recording unit, which can support local recording of high-definition intra-frame compression MEPG2 video and audio files, the recording resolution can be 1920×1080, 3840×2160, and the acquisition frame rate is 25fps;

25. Provide a 2D keying function with video or picture as the background;

26. Support one camera to achieve 3-channel virtual studio effects, for example, in the case of two hosts, hard switch (or pan) from one host to another, or hard switch (or pan) to Panoramic mode (shooting two hosts at the same time), the system can support multiple modes of lens switching with only one camera, realize real-time lens switching and switch with special effects of sliding and panning. Reduce the initial equipment investment;

27. The operation interface supports tally and clock display;

28. Dual virtual studio, the function of dual virtual studio can be realized through the button selection, the characters of the same input lens or different input lenses can be switched in real time in the virtual studio of different scenes, and real-time interaction between the two places can be realized virtually;

29. Virtual studio with mobile tracking, integrated camera and control camera, realizes a real three-dimensional virtual studio with tracking, provides ring screen scenes, and supports ring screen flexible display splicing display;

30. Built-in CG-Alaph subtitles and online packaging system, realizing more than ten layers of Alaph dynamic subtitles, corner marks and station marks, etc., 3D objects and light effects, dynamic materials, DVE direct video, video materials and other methods to achieve live broadcast All-round visual packaging of the show;

31. Provide 3D virtual scene picture materials;

32. Provide no less than 50 sets of 3D professional virtual scenes;

33. The operation interface supports simultaneous display of PVW (pre-monitoring) and PGM (program);

34. Built-in streaming media live broadcast, it can be played normally without installing plug-ins;

35. Weight: about 5kg, size: length 425mm, width 340mm, height 120mm;

Live Streaming

Streaming media live broadcast-network video live broadcast system (built in the host)

1) Web-based live broadcast, network users can watch it in real time through a browser;

2) Support the automatic reconnection of the system after the network failure is eliminated during the live broadcast;

3) Support unicast and multicast, automatically search for multicast, save bandwidth during live broadcast, etc.;

4) There is no limit to the number of concurrent sessions when the system is live broadcast, and there is no limit to the number of users when on-demand. It can be received across network segments and routes. It can support different bandwidths such as broadband and narrowband, and adapt to the applications of local area networks, metropolitan area networks, and wide area networks;

5) The LAN live broadcast delay is about 1 second;

6), with real-time station logo, subtitles, subtitles and other functions, support real-time subtitles and pre-made subtitles, support to edit the subtitles on any other computer in the local area network and then send the subtitles to the live broadcast host;

7) The system supports streaming media recording and live broadcast, and broadcast-level high-definition video recording, recorded as a broadcast-level high-definition video file MPEG2-HL, which is convenient for later editing and high-quality material storage;

8) The system provides a standard streaming media publishing system and an rtmp publishing system for FMS;
